how to connect an external humidity sensor HIH-4000-001 to mydaq (external circuit)?

[hamdouch1000]

hi everybody my supervisor requires me to use the NI myDAQ and he ask me to create an external circuit in order that I may accquire data using the map and the circuit I want to know the contents of this circuit and the appropriate VI!! help please

[Kristoff2]

Hey,

Start with the HIH-4000-001 data sheet, it has all the info you need: http://sensing.honeywell.com/honeywell-sensing-hih4000%20series-product-sheet-009017-5-en.pdf?name=H...

The sensor has 3 pins, power, ground and out.  Out is an analog voltage which represents the humidity using the following equation found on page 2 of the data sheet:

VOUT=(VSUPPLY)(0.0062(sensor RH) + 0.16), typical at 25 ºC

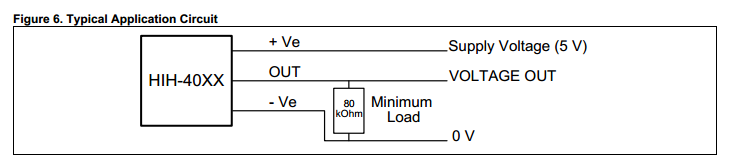

Page 5 of the datasheet recommends the following 'typical application circuit'.

Take some time and look through the data sheet.  All of the information you need is there (that's the point of a data sheet).  Datasheets can be intimidating at first but once you learn how to read them you'll be able to use any sensor you can find.

-Sam K

LabVIEW Hacker

Join / Follow the LabVIEW Hacker Group on google+

[hamdouch1000]

thank you very much for help 🙂

[MRP1508]

hi.. i'm also using this sensor, but i can't get the humidity number exactly, can you give me the vi you use?

what NI module do you use anyway? i'm using NI9201, is it possible?
