Insert z-axis
Hello,

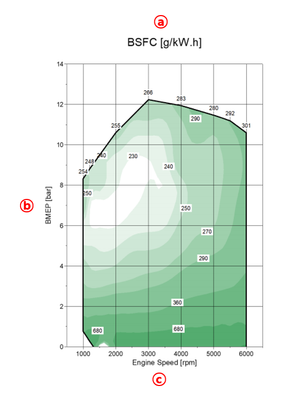

I would like to insert the z-axis in part ⓐ as shown in the picture below.
Is it possible?
Also, is it possible to make a graph like the picture only with 3d graphs?

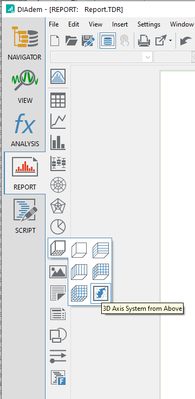

Yes! Take a look at the "3D Axis System from Above" or configure your Axis System to the "XY" plane view. You'll need some sort of "surface" type curve or characteristic diagram. Check out the example in the help, "3D Axis System with Surface and Isolines". I think if you want to show the "boundary curve" like your image below, you'll need to change to the "Characteristic Diagram" type of curve and look at the "Boundary Curve" options.
