PXIE-6571 Total Jitter (Tj)

[sagar7077bishwas]

Hi NI Team,

Please help to share the total jitter (include random Jitter ,Periodic jitter) parameter of Pxie-6571 instrument.


Regards,

Sagar

[santo_13]

---

@sagar7077bishwas wrote:

Hi NI Team,

Please help to share the total jitter (include random Jitter ,Periodic jitter) parameter of Pxie-6571 instrument.


Regards,

Sagar

---

What is the rationale for this request? it is not a clock source to state these parameters, it is a digital pattern instrument.

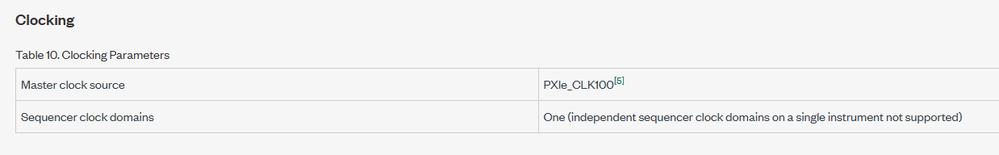

It uses the PXIe-100MHz from the chassis and hence you need to refer the chassis's clock source for jitter.

[sagar7077bishwas]

Hi Santo,

Please refer the below link

https://knowledge.ni.com/KnowledgeArticleDetails?id=kA0VU00000039LJ0AY&l=en-IN
i was expecting a solution like this.

below is the scope shot for 100MHz from PXIE-6570 instrument ,there you can see the jitter results but not sure whether it is comply with the actual response of PXIE-6570

Regards,

Sagar
