Overview
The example is to demonstrate how to write two kinds of analog output in serial manner
Description:
The program is using the DAQmx driver to utilize the DAQ hardware to access the Analog Output device with the predefined range of value
Instructions:
Steps to Implement:

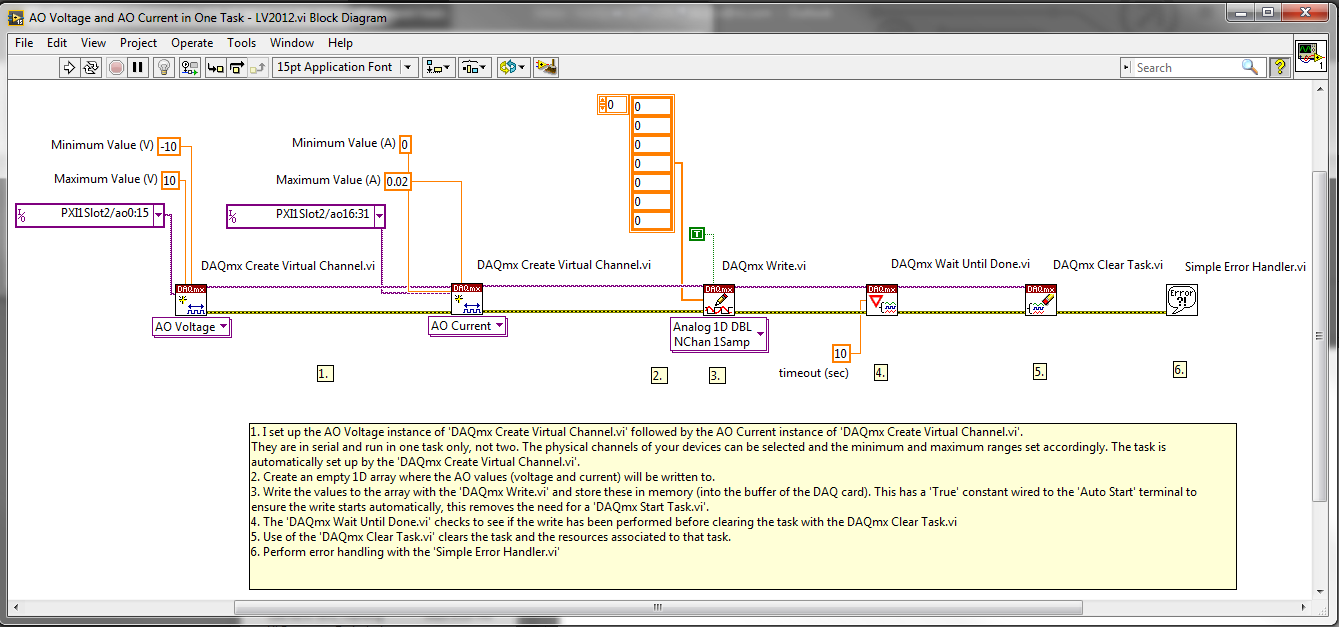

1. Access the block diagram by Ctrl + E
2. Configure the analog output pins for the AO Voltage DAQmx Create Virtual Channel and AO Current DAQmx Create Virtual Channel
3. (Optional) Change the range of the Minimum and Maximum Value of V and A
4. Run the VI
5. (Optional) Turn on the Highlight Execution to see the flow of the VI
To execute this example:
1. Install the required software.
2. Connect the DAQ hardware that supports the AO features
3. Confirm the connection with the MAX with TestPanel
4. Open the VI and refer the Implement Steps
Requirements
Software
LabVIEW 2012 or compatible
NI-DAQmx 16.0 or compatible
Hardware
cDAQ with C series Analog Output Module
