Apply a Gain to Hue, Intensity and Luma in an Image using LabVIEW

by:
‎03-31-2010 12:10 PM
Last Edited by: Member Example_Scrubber_Stephan ‎08-11-2017 05:06 AM

Products and Environment

This section reflects the products and operating system used to create the example.

To download NI software, including the products shown below, visit ni.com/downloads.

    Software

  • Vision Development Module
  • LabVIEW

Code and Documents

Attachment

Download All

Overview

This example VI shows how to apply a gain to several color planes in an image per plane.



Description

This VI allows the user to separate his image in Hue, Intensity and Luma components and apply a Gain to each of them independently.



Requirements

 Software

  • LabVIEW Base Development System 2012 (or compatible)
  • NI Vision Development Module 2012 (or compatible)

 Hardware

  • No hardware is necessary to use this example VI



Steps to Implement or Execute Code

  1. Download and open the attached file
  2. Run the program



Additional Information or References

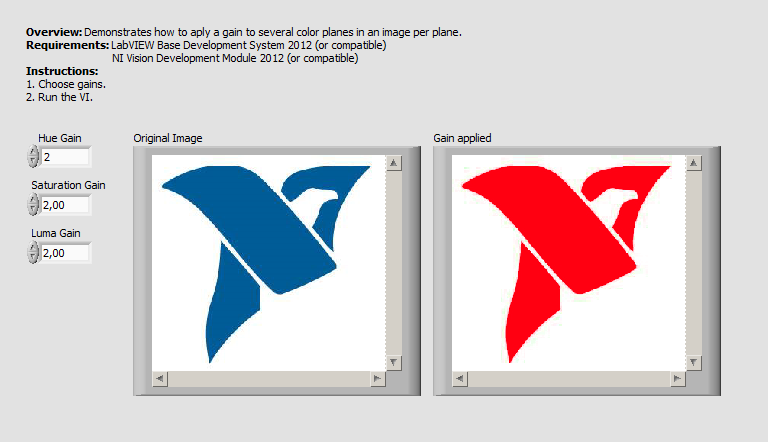

Apply Gain to HSL LV2012 NIVerified.vi - Front Panel.png

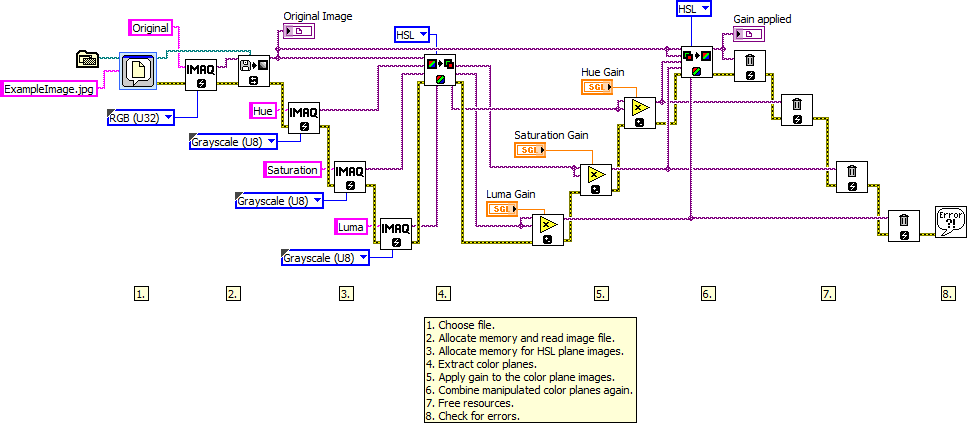

Apply Gain to HSL LV2012 NIVerified.vi - Block Diagram.png



**The code for this example has been edited to meet the new Community Example Style Guidelines. The edited copy is marked with the text ‘NIVerified’. Read here for more information about the new Example Guidelines and Community Platform.**

Francisco Arellano

National Instruments Mexico
Field Systems Engineer - Energy Segment
www.ni.com/soporte

Example code from the Example Code Exchange in the NI Community is licensed with the MIT license.

0 Kudos
