Determine Amplitude during Execution using Cursors

by:
‎05-06-2009 01:10 PM
Last Edited by: Member Example_Scrubber_Luis ‎02-15-2017 05:22 PM

Products and Environment

This section reflects the products and operating system used to create the example.

To download NI software, including the products shown below, visit ni.com/downloads.

    Software

  • LabVIEW

Code and Documents

Attachment

Download All

Overview

Coding that exemplifies how to move Y cursor on a graph to the value where the X cursor meets the graph.



Description

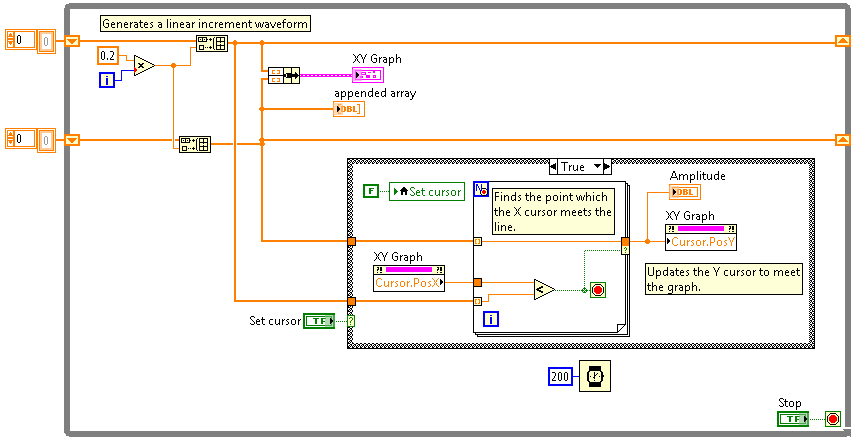

This VI builds an XY graph and allows user to move cursor Y to a desired location. When the user clicks the "set cursor" button, cursor X moves so that it intersects cursor Y and the VI returns the amplitude at the point of intersection.



Requirements

LabVIEW 2012 (or compatible)



Steps to Implement or Execute Code
1. Run the VI
2. Move the X cursor
3. Verify that the Y cursor changes when the graph meets the X cursor
4. Stop the execution with the stop button



Additional Information or References


Simran K
National Instruments
Applications Engineer

Example code from the Example Code Exchange in the NI Community is licensed with the MIT license.
