Generate Pulses from Digital Lines Sequentially

[tcap]

Overview:
Demonstrates on generating pulses on every Digital Output lines.

Description:
This code will continuously generates 8xN array of Booleans, with N points per period using onboard clock.
Note: Using the counter method of generating a PWM output is recommended.

Requirements:

1. LabVIEW 2012 or compatible.
2. NI-DAQmx 15.5.1 or compatible.
3. NI DAQ devices with onboard clock and digital lines.

Steps to Implement or Execute Code:

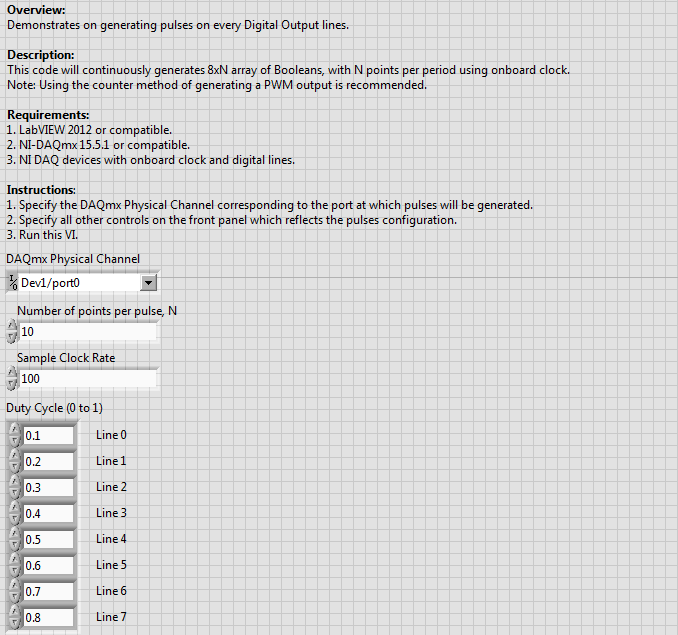

1. Specify the DAQmx Physical Channel corresponding to the port at which pulses will be generated.
2. Specify all other controls on the front panel which reflects the pulses configuration.
3. Run this VI.
