NI-DCPower Measure Record I and V.vi

by:
‎09-13-2011 02:40 PM
Last Edited by: Member Example_Scrubber_Faxu ‎03-08-2017 01:59 AM

Products and Environment

This section reflects the products and operating system used to create the example.

To download NI software, including the products shown below, visit ni.com/downloads.

    Hardware

  • Modular Instrumentation

    Software

  • LabVIEW

    Driver

  • Other

Code and Documents

Attachment

Download All

Overview
This Example Demonstrates how to use Measure Records in NI-DCPower to take simultaneous voltage and current measurements at a sample rate determined by averaging a configurable number of samples.



Requirements

Software

LabVIEW 2012 (or compatible)
NI-DCPower driver which is compatible with your hardware and version of LabVIEW



Hardware

NI-DCPower Device



Steps to Implement or Execute Code

1. Choose the Device Name.
2. Run the VI.



Additional Information or References

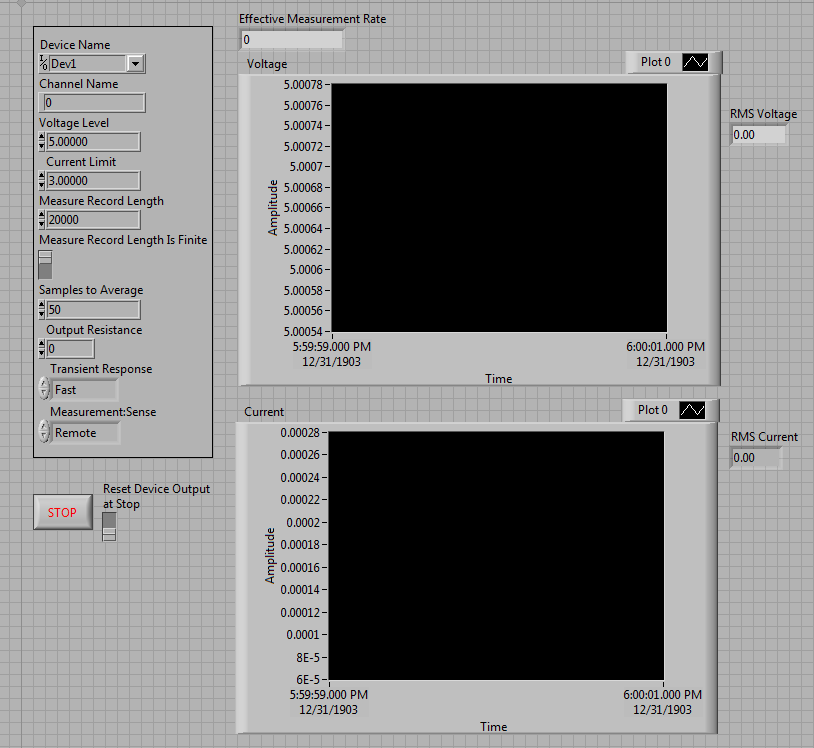

Front Panel Image



**This document has been updated to meet the current required format for the NI Code Exchange.**


Regards,
Glenn

Example code from the Example Code Exchange in the NI Community is licensed with the MIT license.
