Phidgets Current Sensor with Labview

[hacklord]

Developed by Robert Emin

Phidgets Inc.  distributes the 3503_0 - i-Snail-VC-100 100Amp Current Sensor which connects to a number of USB data acquisition devices provided by Phidgets Inc.  In this case it is the 1011_0 - PhidgetInterfaceKit 2/2/2 dongle.  Phidgets Inc.  provides the DLL for Labview and over 100 functions and Vi's for Labview.  This makes Phidgets a low cost high result choice for current, power, voltage, distance, range, pressure, force, touch, motion, envioromental with a wide selection of data acquisition devices.  The formula for calculating the current is:  AC Amps (RMS) = SensorValue/10

Product Specifications

Sensor Properties

Sensor Type Current (AC Through-Hole)

Sensor Output Type Non-Ratiometric

Input Current Min 0 A

Input Current Max 100 A

Current Measurement Resolution 100 mA

Measurement Error Max 0.5 %

Electrical Properties

Output Voltage Min 0 V DC

Output Voltage Max 5 V DC

Isolation Voltage (AC) 2.5 kV AC

Physical Properties

Material UL94V-0 ABS Plastic

Wire Window Size 13.7 mm

Operating Temperature Min -40 °C

Operating Temperature Max 50 °C

1011_0 - PhidgetInterfaceKit 2/2/2 Dongle Product Specifications

Board

USB Voltage Min          4.6 V DC

USB Voltage Max          5.5 V DC

Current Consumption Min          20 mA

Current Consumption Max          500 mA

Available External Current          480 mA

USB Speed          Full Speed

Operating Temperature Min          0 °C

Operating Temperature Max          70 °C

Analog Inputs

Number of Analog Inputs          2

Analog Input Resolution          10 bit

Input Impedance          900 kΩ

Analog Input Voltage Min          0 V DC

Analog Input Voltage Max          5 V DC

5V Reference Error Max          0.5 %

Analog Input Update Rate Min          1 samples/s

Analog Input Update Rate Max          1000 samples/s

Analog Input Update Rate Max (WebService)          62.5 samples/s

Digital Inputs

Number of Digital Inputs          2

Pull-up Resistance          15 kΩ

Low Voltage Max (True)          800 mV DC

High Voltage Min (False)          2.1 V DC

Digital Input Voltage Max          ± 15 V DC

Digital Input Update Rate          125 samples/s

Trigger Length Min          3 ms

Digital Outputs

Number of Digital Outputs          2

Series Resistance          300 Ω

Digital Output Current Max          16 mA

Digital Output Voltage Min          0 V DC

Digital Output Voltage Max          5 V DC

Front End User Interface

Block Diagram

Functions provided by Phidgets Inc.  As can be observed, there is many more and a good variety.

This is the dongle hooked up to the front USB of a computer.

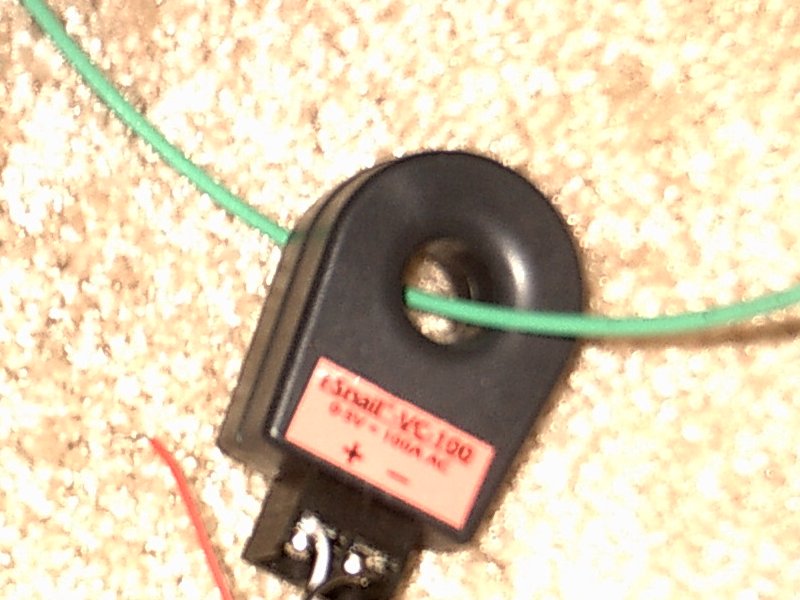

The current sensor.  Very durable and tough.
