Plot Boolean Array on Mixed Signal Graph

by: Active Participant Active Participant
‎03-16-2009 04:36 PM
Last Edited by: Member Example_Scrubber_Ivan ‎02-10-2017 01:32 AM

Products and Environment

This section reflects the products and operating system used to create the example.

To download NI software, including the products shown below, visit ni.com/downloads.

    Software

  • LabVIEW

Code and Documents

Attachment

Download All

Overview: This example demonstrates how to take a boolean array and plot it on a mixed signal graph while it is being updated.

Description: This example demonstrates how to take a boolean array and plot it on a mixed signal graph while it is being updated.

Requirements: LabVIEW 2012 (or compatible). Hardware: none.

Steps to Implement or Execute Code:

1. Run the VI.
2. Play with array of controls by switch on/off.
3. View changes on the DIO graph.

Additional Information or References:



Plot Boolean Array on Mixed Signal Graph FP.png

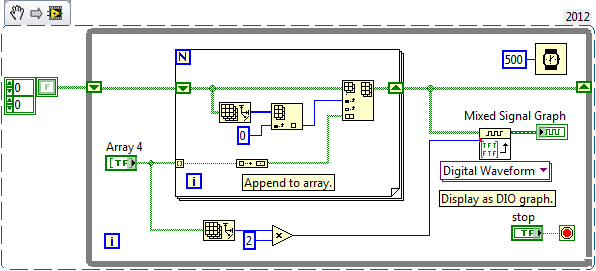

Plot Boolean Array on Mixed Signal Graph sn.png

**This document has been updated to meet the current required format for the NI Code Exchange.**



Will
CLA, CLED, CTD, CPI
LabVIEW Champion
Choose Movement Consulting
choose-mc.com

Example code from the Example Code Exchange in the NI Community is licensed with the MIT license.
