Programmatically setting range for multiple scales

by:
‎03-06-2009 02:07 PM
Last Edited by: Member Example_Scrubber_Ivan ‎02-28-2017 01:48 AM

Products and Environment

This section reflects the products and operating system used to create the example.

To download NI software, including the products shown below, visit ni.com/downloads.

    Software

  • LabVIEW

Code and Documents

Attachment

Download All

Overview: This VI demonstrates how to use Graph Property Node to change its properties.

Description: When you have a program that involves a waveform graph with multiple scales, it is possible to set the range for these scales programmatically through property nodes.

Requirements: LabVIEW 2012 (or compatible), Hardware: none.

Steps to Implement or Execute Code:

1. Change the settings.
2. Run the VI.
3. Look how the graph is changed after running the VI.

Additional Information or References:



Programmatically setting range for multiple scales FP.PNG

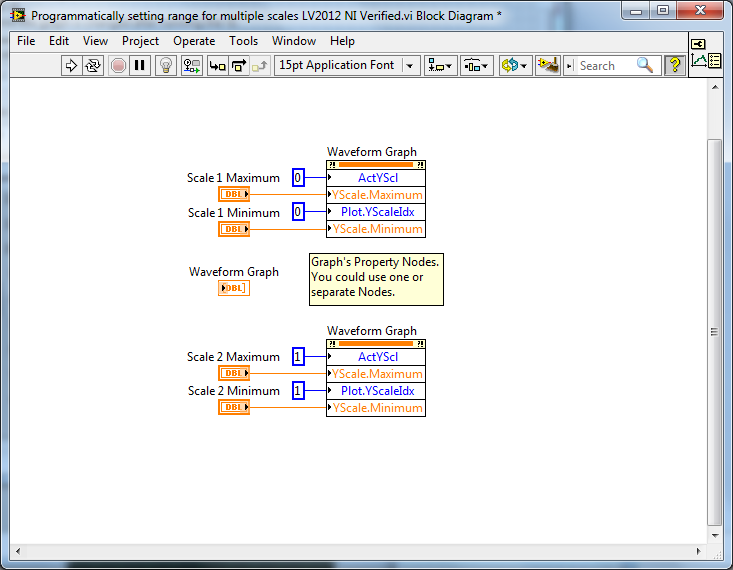

Programmatically setting range for multiple scales BD.PNG

**This document has been updated to meet the current required format for the NI Code Exchange.**

Misha

Example code from the Example Code Exchange in the NI Community is licensed with the MIT license.
