This example wires 32-bit Single value into input of Swapped Value
Description

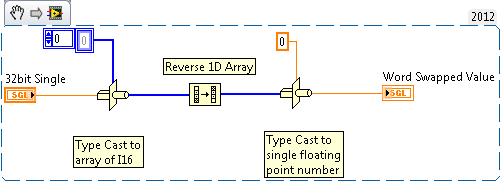

LabVIEW provides the Swap Words Function that swaps the high-order 16 bits and the low-order 16 bits for every long integer input to the function. This function does not work for floating point numbers though. To get around this you can use the Type Cast function to cast the value to a 1D array of bytes. Then use the Reverse 1D Array function and type cast it back to a floating-point number. This is relavant when working with Modbus because 32-bit single values are stored in two 16-bit registers. The issue is discussed in this KB. The picture below shows what the subVI will be performing.
Requirements
- LabVIEW 2012 (or compatible)
Steps to Implement or Execute Code
- Download the attached folder to your computer
- In the block diagram of your top-level VI, right-click select Select VI
- Navigate to "Word Swap Single 2012 NIVerified.vi" click OK.
- Run this VI
Additional Information or References

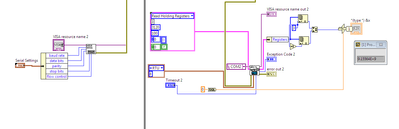

VI Block Diagram
