SFP Reference Schematic Design

[onrep]

I want to design a carrier board for NI sbRIO9607 mainboard, which has a gigabit ethernet port pinouts. However, I want to enlarge my system by SFP modules. Hence, I added a SFP Cage and SFP Connector into my carrier board design. However, I could not find a reference schematic design for SFP Connector. You may find a SFP Module's related SFP Host Connect Electrical Interface and Pins Descriptions and the GBE Reference Schematic attached into the post.

Now, the question is, how can I put SFP instead of the GBE? Is there any reference schematic design for SFP connection or SFP to GBE conversion?

Thanks in advance.

Kind Regards.

Onur

[jiangliang]

You should check the suggested PHY IC， to see if it able to support Fiber, if it does, I think you can use SFP in the  GBE1 port.

[onrep]

Hi jiangliang,

I found a reference schematic design for SFP module connection. However, I could not provide the connection between SFP and GBE. There are Protocol IC,  SerDes IC and PLD / PAL. I could not give an exact decision for the conection. Do you know any ICs or Converters, or do you have a suggestion for the physical connection? You may find the related SFP schematic below.

Thanks in advance.

onrep

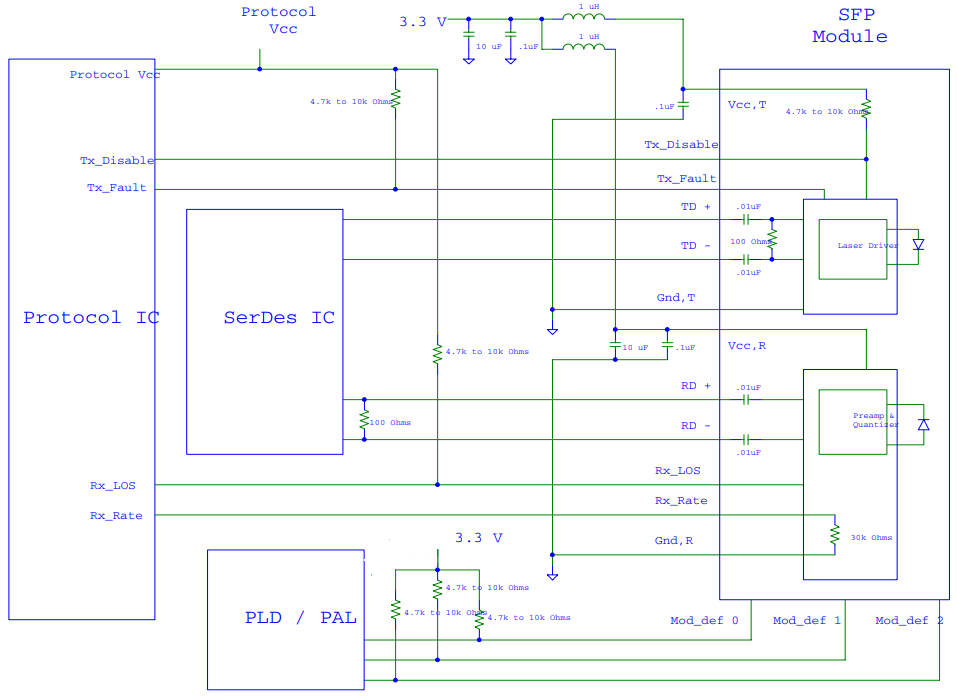

SFP Reference Schematic
