Configuring Resolver in MAX

I am new to labview and MAX. I am currently doing upgradation work of labview from version 7 to 15. I want to create a virtual channel in MAX 15.0 for resolver. I tried the same way how they created earlier in MAX 3.0 for labview 7 using the same values. But some parameters are missing in MAX 15 for configuring that channel. Attached the Screenshots

Download All
0 Kudos
Message 1 of 7
(3,913 Views)

There is a HUGE difference going from LabVIEW 7 to LabVIEW 2015 -- DAQmx, which is so much easier to use than Traditional DAQ that you should consider not even looking at your LabVIEW 7 code (except to know what you want to do, what channels you need, what sampling rate, etc.).  I made the mistake of trying to "understand" the (really hairy) logic of some LabVIEW 7 A/D conversion code -- when I just said "Oh, forget it, let's see how to do this with DAQmx" (and found out how easy it was, how much nicer the functions are, how much easier to use, how well they work with MAX and LabVIEW Project), the code almost wrote itself.



Bob Schor

0 Kudos
Message 2 of 7
(3,844 Views)

So How I have to do ? How I have to configure channel for resolver in MAX? Could you please help me.

0 Kudos
Message 3 of 7
(3,837 Views)

Hi tomp,

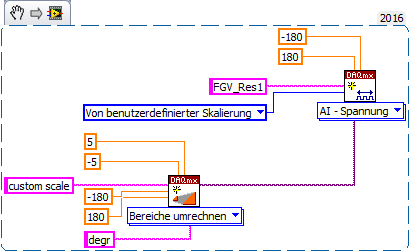

from your MAX3 image I would say:

- create a virtual channel set for voltage measurement with a range of ±5V

- apply a custom scale to scale the ±5V voltage range to ±180° range…


Best regards,
GerdW


using LV2016/2019/2021 on Win10/11+cRIO, TestStand2016/2019
0 Kudos
Message 4 of 7
(3,829 Views)

@tomp93 wrote:

So How I have to do ? How I have to configure channel for resolver in MAX? Could you please help me.


Spend some time with Getting Started with NI-DAQmx Tutorials.  You will learn a lot.



Bob Schor

0 Kudos
Message 5 of 7
(3,817 Views)

Hi GerdW,

In traditional DAQ, there is option for configuring channel also as in the screenshot below.

0 Kudos
Message 6 of 7
(3,796 Views)

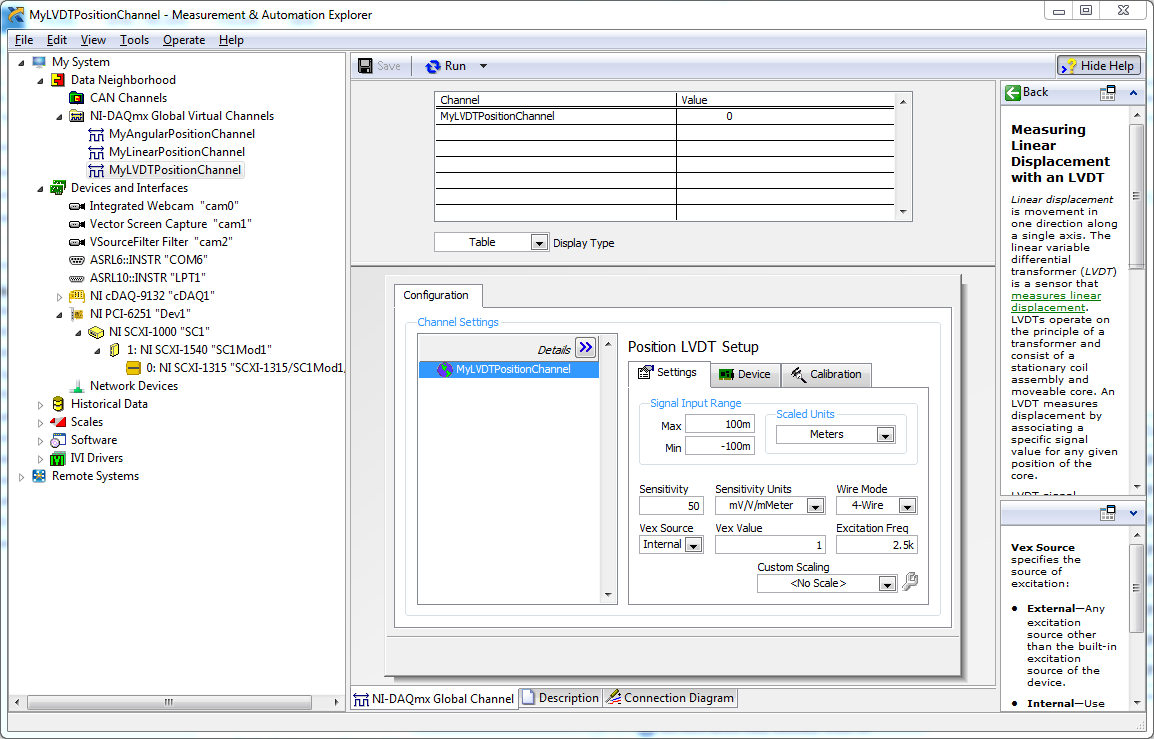

Yes and DAQmx has a similar setup screen for virtual channels and tasks.  I'm a little unfamiliar with LVDTs so I don't know if there are other settings I'm forgetting but this is with a simulated 1540.




0 Kudos
Message 7 of 7
(3,784 Views)
