If you're optimizing for diagram space and need good performance, there's always the OpenG solution:
@tst wrote:
I'm not sure you would get the performance benefits in this case. Since a reversed array isn't actually reversed, appending to its "end" would still require allocation and shifting stuff around in memory. If anything, I would expect that appending to the BEGINNING of a reversed array would be more efficient (assuming LV had that optimization, but my guess is that this optimization doesn't actually exist).
This started out as a short two line post:
Someone earlier in this thread mentioned that there are rare cases where Reverse 1D Array will go ahead and make a copy. Well, this is often one of those rare cases. When you reverse the array and then immediately start editing it, LV's compiler will notice that and go ahead and make a full copy of the array at the Reverse call.
And then I started adding details. Read on for more details about LV, buffer allocations, and compiler optimizations:

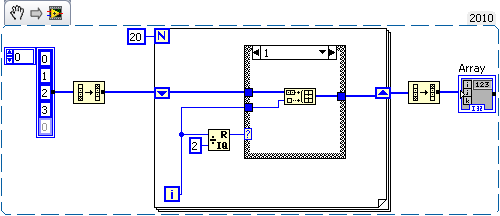

I've told some of you for years that when you use "Show Buffer Allocations" and you see a black dot, that means something was allocated but it doesn't necessarily mean that a copy was made. This is an excellent example. Take a look at this VI in which I have turned on "Show Buffer Allocations":
Notice that both of the Reverse 1D Array prims has a black dot on the output terminal, indicating a memory allocation. Now, if you load this VI and hover your mouse over the wires and look at the Context Help window, you'll see something interesting...
The value coming out of the constant is going to be modified in the For Loop. Since we don't want to modify the actual value displayed in the constant, LV needs to make a copy. LV could make the copy at the shift register, but LV generally moves copies upstream as far as they can go. The earliest point in this diagram is at the first Reverse function. That function decides to actually make a full copy of the array, reversing it as it goes. The Context Help reflects this by showing that the output type is a "1D Array of". But the second Reverse function doesn't need to make the copy, so it outputs what we call a subarray, and this is reflected in the Context Help as "1D (sub)array of". A subarray is a special data type that essentially is a temporary reference to another wire that says, "The same as that other wire but with the following modifications". Those modifications can include reversing, decimation, extracting a subpiece, etc -- any simple transformation on the existing data that can be recorded using a starting index and a stride length (positive or negative).
The "Show Buffer Allocations" shows a black dot on the second Reverse 1D Array primitive. Many people call these "copy dots", and here's one reason why I've always said that slang term is inappropriate: LV is not making a copy of the array at the second Reverse function. It is, however, allocating a new subarray -- a subarray takes 12 bytes (on a 32-bit system). The buffer allocation dot means space for something of that terminal's data type was allocated -- but you have to pay attention to what that output type actually is. (There are other reasons why the term "copy dot" is inaccurate, but I'm not going to go through all of those here -- they're documented in various places on ni.com).
So when you are "playing hide the dots" to try to optimize your VIs memory (those of you who work a lot on RT systems probably know this game), pay attention to the data type coming out of those dots. If the type is subarray (or substring, because we use the same trick for those), then you can ignore that black dot -- it doesn't mean a copy!
Now, you might be thinking, "Hey, that's cool, but LV could do the same thing for clusters. Why isn't there a subcluster for saving memory at an Unbundle node?" Because that breaks out a single element, LV doesn't need a special data type to optimize this case -- it just sets the address of the wire to be the address inside the upstream cluster (unless the element is being modified downstream, in which case a copy does get made... unless the item is being put right back into the same cluster using a Bundle node, in which case a copy is not made... unless... well, let's just say that the LV compiler does a deep analysis of how you're using the cluster data and does a great job of minimizing the number of copies of data). Similar deep anlysis is done when indexing a single value out of an array.
Currently, you'll never see a subVI output a subarray or a substring. As of LV 2010, passing through a subVI always makes a copy because we have to have a real array copied into the output FPTerminal in case it gets displayed on the panel. Work continues on the compiler to optimize cases like this.
Aristos Queue wrote:
I've told some of you for years that when you use "Show Buffer Allocations" and you see a black dot, that means something was allocated but it doesn't necessarily mean that a copy was made.

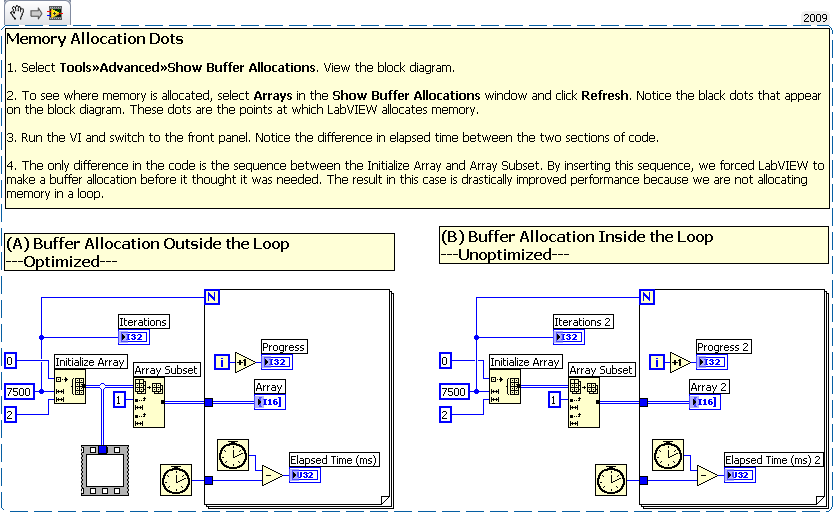

Have you seen this? Could you explain why (A) runs ~20 times faster than (B)? More importantly, how can we use "Show Buffer Allocations" to spot cases like this?
@LabBEAN wrote:
@Aristos Queue wrote:
I've told some of you for years that when you use "Show Buffer Allocations" and you see a black dot, that means something was allocated but it doesn't necessarily mean that a copy was made.
Have you seen this? Could you explain why (A) runs ~20 times faster than (B)? More importantly, how can we use "Show Buffer Allocations" to spot cases like this?
In LV 8.6 I do not get that dot on the output of the Array Subset in version "B".
What version is that image from?
Ben
