Determining the pins of NI CB-68LP DAQ

[LTBALAZS]

Hi there,

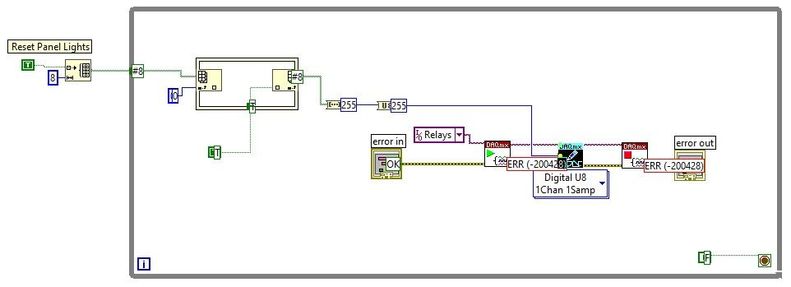

Can we find out which pin is used in the VI I attached?


Kind regards,
Balázs

[RavensFan]

Look in Measurement and Automation Explorer and see what the task named "Relays" is set up for.

[Michael_Munroe]

After you locate the Relays Task under Data Neighborhood in Max, you need to right-click the DAQ device under Devices and Interfaces and choose Show Pinout. The pins on the DAQ device should match the CB-68 directly. Your trying to write a U8 to the DAQ device. The Relays task needs to be mapped to an 8-bit port or you'll get an error.
