Digital Waveform cannot show all plot in the graph indicator

[MindLoops]

Dear all,

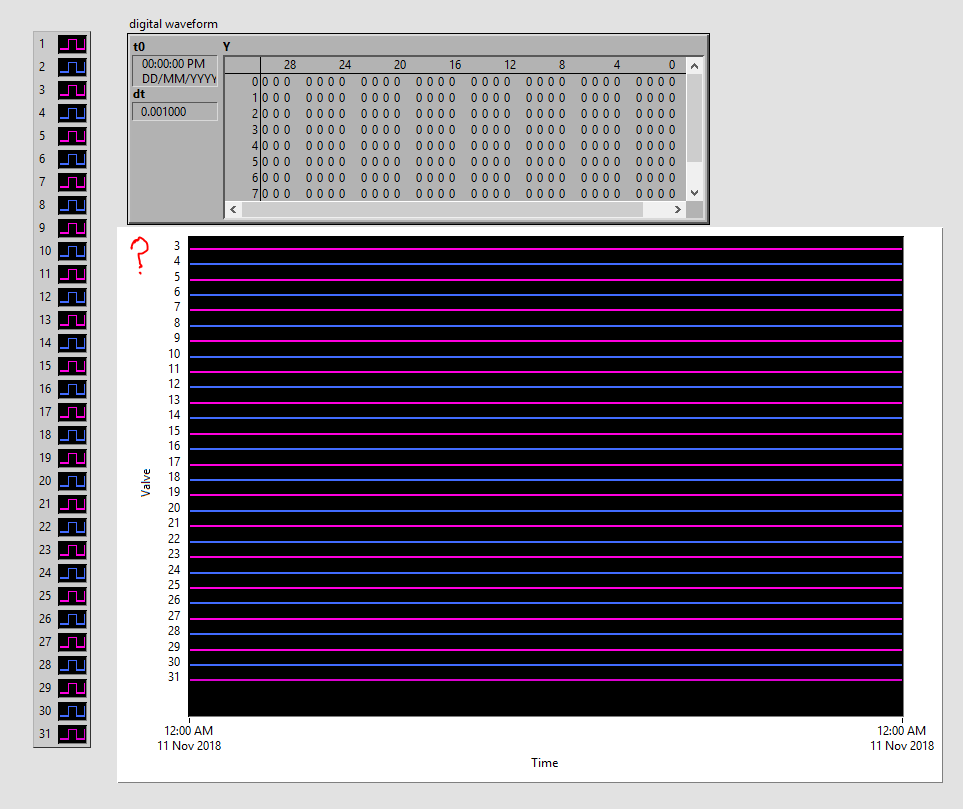

Currently i am facing a problem where my digital waveform cannot show all plots in the graph. I had configured total 31 line for the graph but it only show 29 line eventhough there are some empty space at bottom. May i know is there any maximum line to plot a digital waveform graph? The plot is start from line 3 to line 31. I had tried to enlarge the graph area but it still the same. Here i attached my vi for your reference.

[GerdW]

Hi Loop,

why did you switch off the Y scale autoscaling?

Enable it…

[MindLoops]

Hi GerdW,

Thank you for your reply.  I already enabled the y-scale auto scaling and re-run the program. But it still the same.... You can make all lines appeared after enable auto-scaling?

[MindLoops]

Hi GerdW,

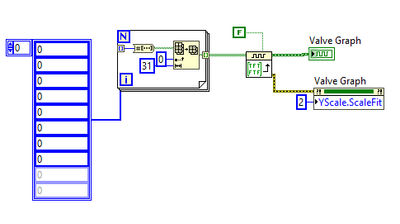

I made the property autoscale in program then only it works. Thank you for your help 🙂

[GerdW]

Hi Mind,

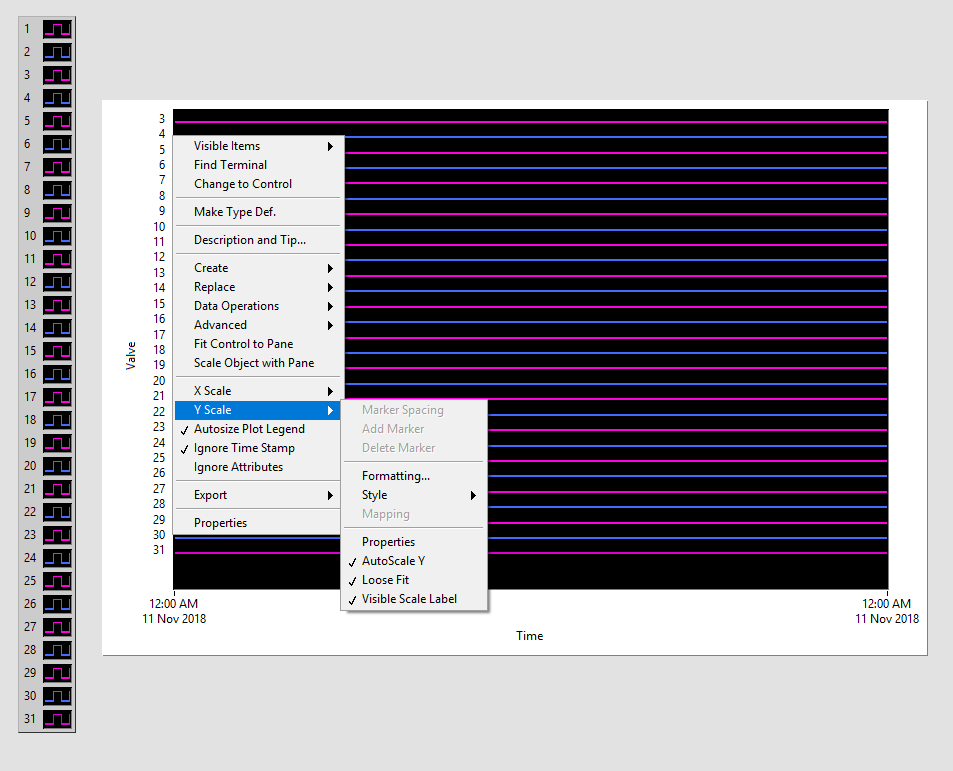

for me it was sufficient to set the Autoscale in the context menu of the graph.

No idea why you would need an additional property node…

[RavensFan]

I had been reading this thread from the beginning.  After I saw your message about turning on autoscale, it felt like it didn't help me either.  But then after your further messages, I tried it and it did work.

I have no idea the difference between the original and attempt and later.  Something is erratic about that graph.  Latest check, turning on autoscale seemed to make it work, and I did not need to add a property node.
