Graph

[GerdW]

Hi Mayur,

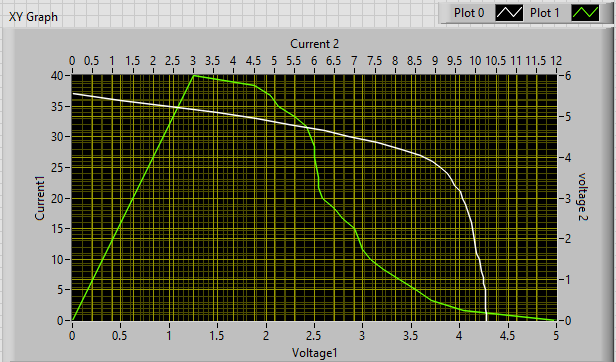

On my second data you can see there is Current on Y-axis and Voltage on X-axis. So want Voltage on X-axis and Current on Y-axis.

And what is the problem?

Voltage=x axis, current = y axis - just like you want it to be!

As others already said: attach your VI!

Show how it currently works and also show how you want it to work.

Tell us the exact problem you have in reaching your goal!

[Mayur789]

Sorry my mistake. From second data I want Voltage on Y-axis and Current on X-axis

[wiebe@CARYA]

You can use Swap Values to swap the X and Y data before bundling... This is btw the same as swapping the input files to begin with.

You might want to flip the axis. For that you need to get a scale reference and set the Flipped property.

Maybe, just maybe, it's a good idea to post the VI?

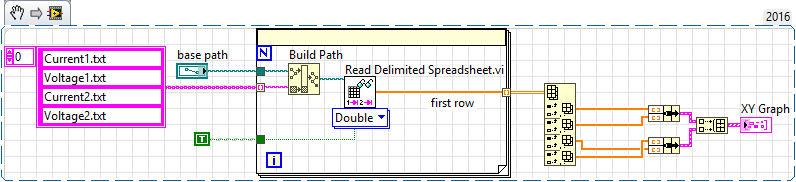

EDIT: OK, you finally did post the VI...

[GerdW · Accepted solution]

Hi Mayur,

From second data I want Voltage on Y-axis and Current on X-axis

When you want the voltage data used for Y axis you need to wire it accordingly for this BuildXYGraph expressVI!

So you aren't able to change the wiring in your VI? Or to implement a case structure with a switch? Or to use the Swap operation suggested by Wiebe on your own?

Did you take the free beginner courses offered for free by NI on their website?

[GerdW · Accepted solution]

Hi Mayur,

From second data I want Voltage on Y-axis and Current on X-axis

When you want the voltage data used for Y axis you need to wire it accordingly for this BuildXYGraph expressVI!

So you aren't able to change the wiring in your VI? Or to implement a case structure with a switch? Or to use the Swap operation suggested by Wiebe on your own?

Did you take the free beginner courses offered for free by NI on their website?

[jwscs]

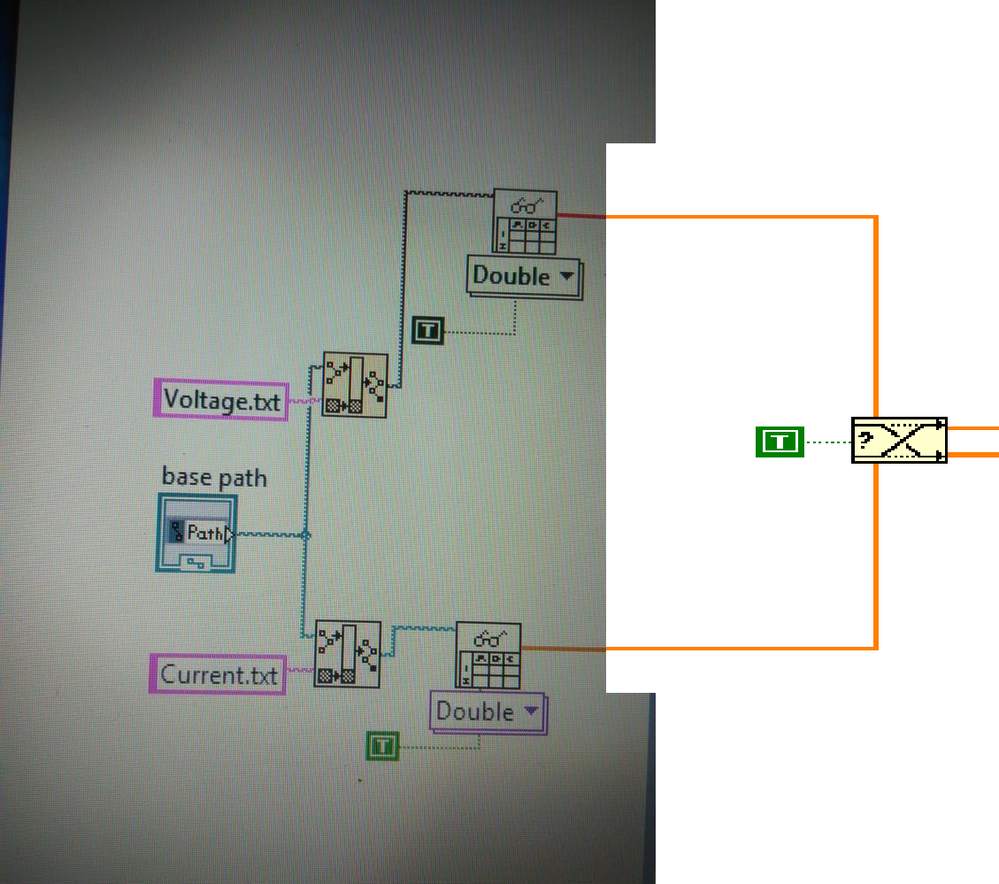

is this what you want? i got confused.

[Mayur789]

No but thanks for the help
