I want split wave form.






currently, I'm using alazartech company SDK
it makes A+B sin waveform by function generator and generate FFT
but I want Split A and B wave and display A and B signals separately


I used below
but these didn't work


1. signal selector

 - it did not show signal2 and signal 1 is A+B wave form.
2 array index

-  just display A+B two wave from
3. SDK copy and paste

- last setting make wave form, if select A lastly wherever, display A
4. Array Subset

- just display A+B two wave from

5. split signal

- just display A+B two wave from





my english is short, It's my apologize.







0 Kudos
Message 1 of 9
(804 Views)

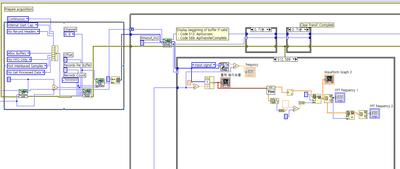

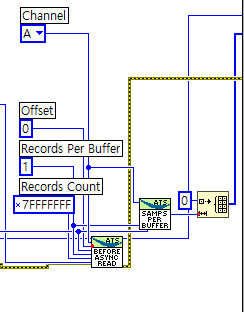

You show a truncated code picture and nothing is labeled A or B.  You need to be much more specific.

0 Kudos
Message 2 of 9
(773 Views)

here is full code PDF

0 Kudos
Message 3 of 9
(756 Views)

@yeers wrote:

here is full code PDF


PDF is no better than an image, in terms of LabVIEW, sharing the VIs is the best.

Santhosh
Soliton Technologies

New to the forum? Please read community guidelines and how to ask smart questions

Only two ways to appreciate someone who spent their free time to reply/answer your question - give them Kudos or mark their reply as the answer/solution.

Finding it hard to source NI hardware? Try NI Trading Post
0 Kudos
Message 4 of 9
(751 Views)

here is the vi file

but you should be in error.

because you don't have SDK file



but If you can analyze it, I am wiling to help.

0 Kudos
Message 5 of 9
(734 Views)

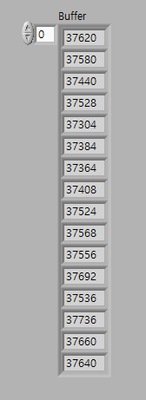

We still don't know what A and B is. Are you talking about the blue wire forming the Y of the waveform? How does the data look like? Can you wire an indicator there, run the program until it displays the data, stop the VI and turn the indicator into a constant and attach the VI again so we have something to look at?



It seems you are trying to find two frequencies with a hairball of code. Once we know how the signal looks like, it will become more clear. Does the signal contain two major frequencies? How much noise is there? For Frequency 2, you probably need to add the index of the first frequency.

0 Kudos
Message 6 of 9
(725 Views)

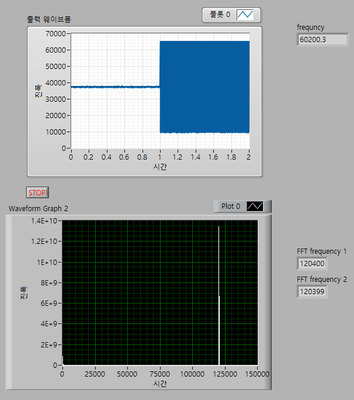

Yes, I'm talking about the blue wire forming the Y of the waveform,







and

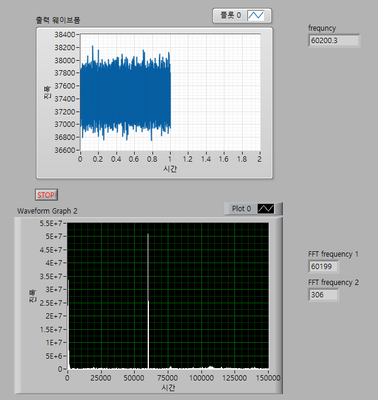

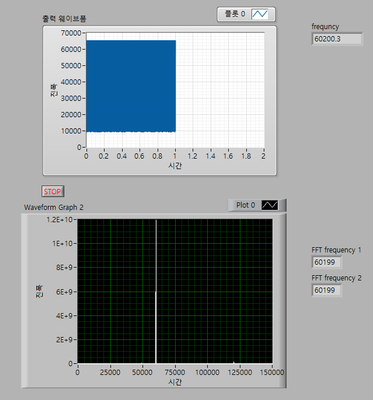

below refer to the A, AB, and B signal image

and currently,the A signal is not working. but it is device problem. don't care about that














0 Kudos
Message 7 of 9
(712 Views)

So your waveform contains two equal parts, both with an offset of about 37000. The first looks like noise and the second with a large amplitude high frequency that we cannot see because it just looks like a blue filled square. No way to tell more unless you actually attach some real data.

I would think you should split first, then fft each half separately.

0 Kudos
Message 8 of 9
(703 Views)

What kind of real data?
