Plotting multiple sensor values on a waveform graph with two y axes of different scale

[girish_jadhav]

I want to plot five temperature sensors values and five absolute humidity values calculated from relative humidty sensors in a single graph.

Of course I can just bundle them all and display it in a graph but then scaling is not right.

I tried to build an array of both sets of values and then connected it to the graph but I am not getting it right. Is there a way to do it?

[GerdW]

Hi girish,

---

@girish_jadhav wrote:

I want to plot five temperature sensors values and five absolute humidity values calculated from relative humidty sensors in a single graph.

---

You use several charts in your VI - and no graph at all!

You need to create additional Y scales and assign each plot to a scale…

[girish_jadhav]

---

@GerdW wrote:

Hi girish,

---

@girish_jadhav wrote:

I want to plot five temperature sensors values and five absolute humidity values calculated from relative humidty sensors in a single graph.

---

You use several charts in your VI - and no graph at all!

You need to create additional Y scales and assign each plot to a scale…

---

Hi GerdW,

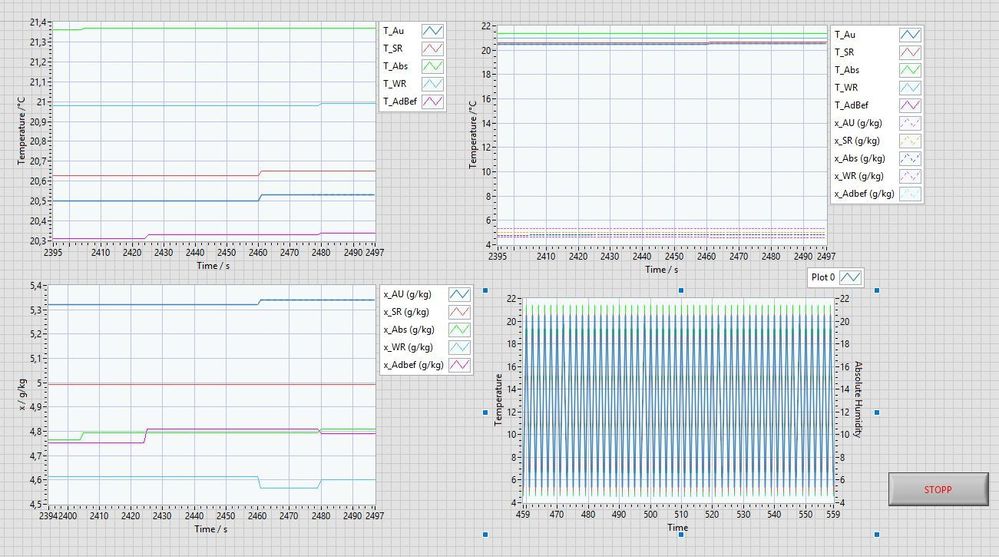

I made a mistake in the description. I am actually using a chart. I tried to add one more y scale and used property node to assign the scale but it didn't work. I guess the same output as in the bottom right plot.

[GerdW]

Hi girish,

---

@girish_jadhav wrote:

I tried to add one more y scale and used property node to assign the scale but it didn't work. I guess the same output as in the bottom right plot.

---

You can assign the plots in their context menu in the plot legend, no need for property nodes…

[girish_jadhav]

Hi GerdW,

I did but still the plot looks the same 😞

I have used cluster to array and then built a 2D array to plot the waveform. Would it work this way?

I think it is plotting like this 21.57, 6.9. 21.26, 4.8... But I want each value as a different line in my chart.

[GerdW · Accepted solution]

Hi girish,

---

@girish_jadhav wrote:

I have used cluster to array and then built a 2D array to plot the waveform. Would it work this way?

I think it is plotting like this 21.57, 6.9. 21.26, 4.8... But I want each value as a different line in my chart.

---

Apparently your method does not work!

Either use a cluster of 10 elements - or a 2D array of dimensions 1×10. Your 2D array of 2×5 elements does not work…

Did you read the context help of your charts to learn about the supported datatypes?
