RS-485 Compatibility with myrio.

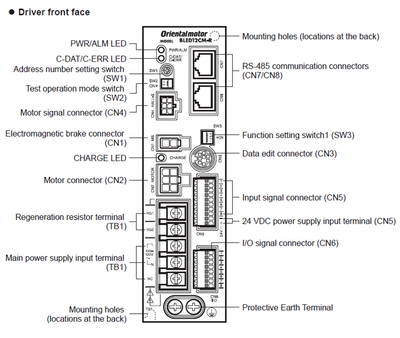

Hello, I am using BLE-series brushless DC motor and driver package and in motor Driver the communication port is RS-485,and I have to control DC motor through LabVIEW program. Is there any possible way to connect RS-485.



Need your help.

0 Kudos
Message 1 of 4
(1,261 Views)

You can check out this thread: https://forums.ni.com/t5/LabVIEW/RS485-Interfacing-pins-in-myRIO/td-p/2916542



In short, not ready made and to use without getting your hands a little dirty and/or buying some extra electronics hardware.

Rolf Kalbermatter  My Blog
DEMO, Electronic and Mechanical Support department, room 36.LB00.390
0 Kudos
Message 2 of 4
(1,230 Views)

Thankyou for sharing this link but I have already gone through this, if I am using full duplex ICs (i.e, SN65HVD147).

1. How to connect this IC to the Myrio?

2. If It is connected so can I use UART?



because the motor driver which i am using has RS-485 communication connector, so how to send the command through Myrio to the motor driver ?




0 Kudos
Message 3 of 4
(1,192 Views)

You want to use a chip with auto direction control! https://www.ti.com/lit/an/slla574/slla574.pdf?ts=1671089759867

Rolf Kalbermatter  My Blog
DEMO, Electronic and Mechanical Support department, room 36.LB00.390
0 Kudos
Message 4 of 4
