Reverse Engineer an Instrument Serial Link

I have an .exe application that communicates with an instrument.  The .exe includes a GUI with a few configuration options, then acts as a data logger once the instrument is running.

I'd like to use LabVIEW to fully automate this instrument as part of an automated (and un-manned) maufacturing process, configuration and datalogging.  There is no addtional information available from the vendor.

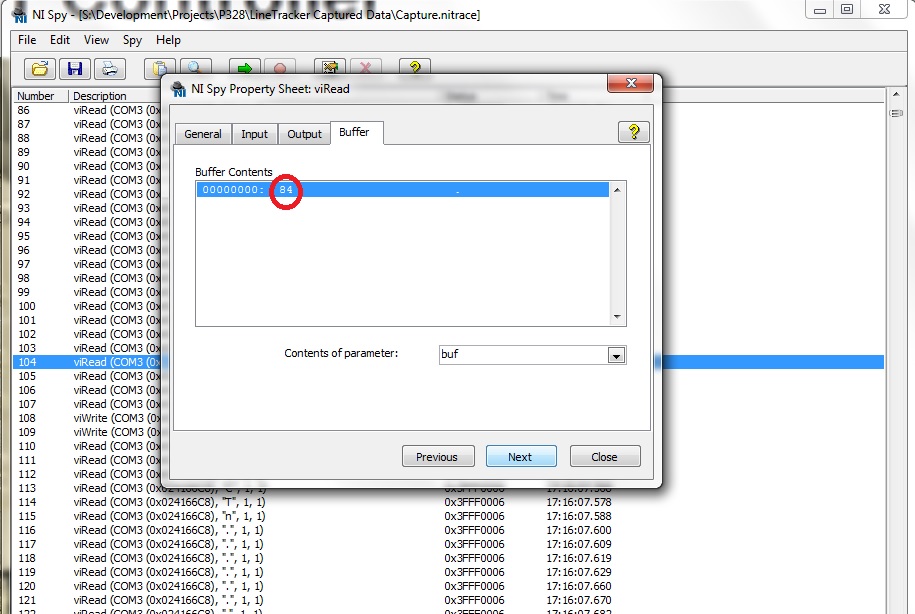

Does anyone have experience to share on the best approach to this type of task?    Attached are data grabs from NISpy and the corresponding data exported from the GUI application.  The setup of the serial link is obvious, but I don't see the data.  Is "...CTk...."  the data in an encoded format?  Would Portmon to similar sniffer software provide more information?

Download All
0 Kudos
Message 1 of 11
(3,279 Views)

how can I extract the NI Spy buffer data to a spreadsheet?


0 Kudos
Message 2 of 11
(3,232 Views)

No manual/programmer's guide for this equipment?  Maybe it is easier to see the output with Hyperterminal?

Bill
CLD
(Mid-Level minion.)
My support system ensures that I don't look totally incompetent.
Proud to say that I've progressed beyond knowing just enough to be dangerous. I now know enough to know that I have no clue about anything at all.
Humble author of the CLAD Nugget.
0 Kudos
Message 3 of 11
(3,219 Views)

discovered you can change export options to include buffer data.  Now using match pattern VIs to strip the data from the txt file with LabVIEW.

0 Kudos
Message 4 of 11
(3,216 Views)

I don't know about you, but I consider these kinds of projects to be some of the most fun - but they have the potential to be very frustrating at the same time.  I'm glad you are working towards a solution.

Bill
CLD
(Mid-Level minion.)
My support system ensures that I don't look totally incompetent.
Proud to say that I've progressed beyond knowing just enough to be dangerous. I now know enough to know that I have no clue about anything at all.
Humble author of the CLAD Nugget.
0 Kudos
Message 5 of 11
(3,211 Views)

seems that the device is simply streaming values

try to run this program

if you can see some data in the read string indicator(s) fine 🙂

hit edit-make current values default and save the vi and repost it if you need help in decoding.



Greetings from Germany
Henrik

LV since v3.1

“ground” is a convenient fantasy

'˙˙˙˙uıɐƃɐ lɐıp puɐ °06 ǝuoɥd ɹnoʎ uɹnʇ ǝsɐǝld 'ʎɹɐuıƃɐɯı sı pǝlɐıp ǝʌɐɥ noʎ ɹǝqɯnu ǝɥʇ'


0 Kudos
Message 6 of 11
(3,165 Views)

thanks for the pointers Bill and Henrik.  For anyone who finds this stuff fun, VI attached.........

0 Kudos
Message 7 of 11
(3,142 Views)

Arrg still with LV2012

Greetings from Germany
Henrik

LV since v3.1

“ground” is a convenient fantasy

'˙˙˙˙uıɐƃɐ lɐıp puɐ °06 ǝuoɥd ɹnoʎ uɹnʇ ǝsɐǝld 'ʎɹɐuıƃɐɯı sı pǝlɐıp ǝʌɐɥ noʎ ɹǝqɯnu ǝɥʇ'


0 Kudos
Message 8 of 11
(3,133 Views)

Have you tried a serial port sniffer like PortMon part of the Sysinternals Suite from MS Technet.

========================
=== Engineer Ambiguously ===
========================
0 Kudos
Message 9 of 11
(3,124 Views)

I've got the data using NI-Spy, did look at portmon tho.  The interesting part now is finding the data, last time I designed a serial link, to avoid having the start byte in my data, I used only a portion of each 8-bytes for data.  When you reverse engineer somone else's work, it's hard to know what part of each byte is actual data, then from that what is low-high, msb lsb etc...

0 Kudos
Message 10 of 11
(3,113 Views)
