Setting up SCC-TC02 module in NI 6251 with signal conditioner SC 2345

I am having trouble setting up a thermocouple input module (SCC TC02) to my data acquisition device (NI 6251 with signal conditioner SC 2345). I thought I hooked up everything right, but the LabVIEW is showing a constant large temperature value. That means the DAQ is not getting any data from the module.

the thermocouple works fine.

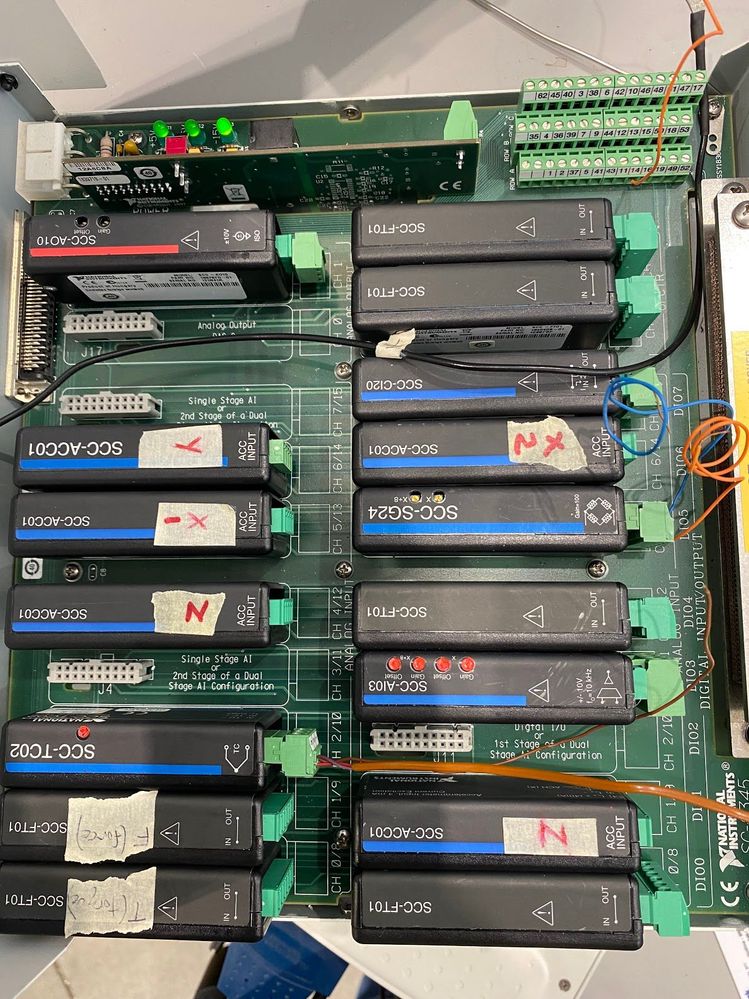

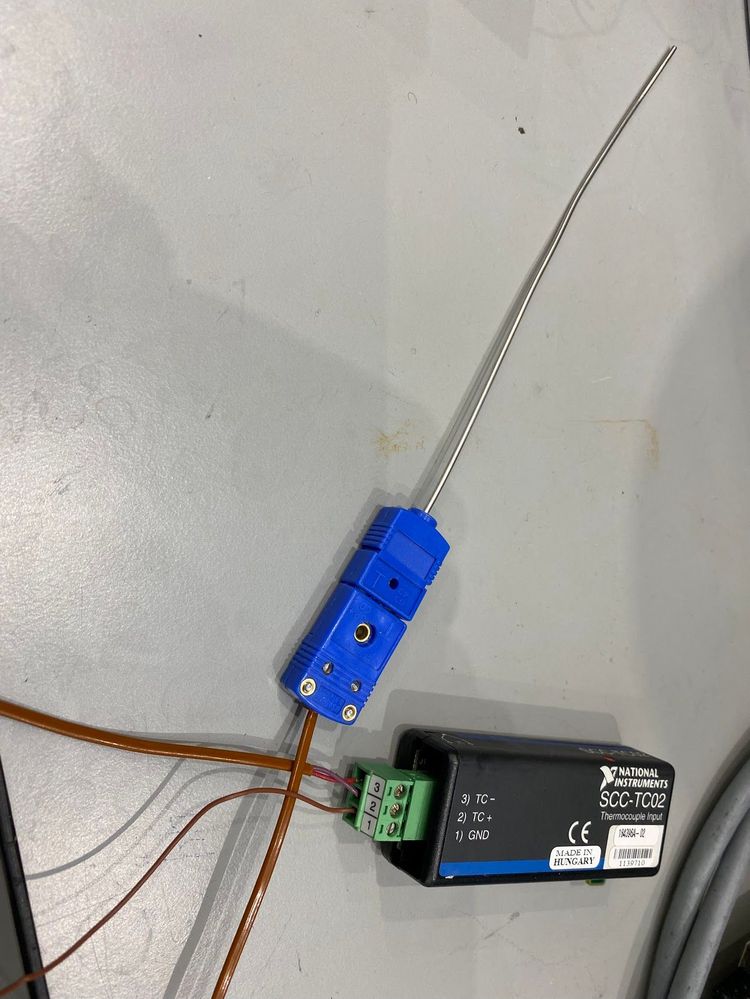

I must be missing something. But I can not figure out what it is. I attached picture of my setup for the reference. Please someone with experience help!IMG_6348.jpgIMG_6350.jpg
