Square teeth movement control

[Theone2222]

Hi all,

I am new to labview, using labview 8.5.
I want to use Labview to control LANG MCL-2 stepping-motor controller. I managed to get the "square teeth" movement where the movement should be in steps and with each step a measurement should be done, but the problem is I can't figure out a proper condition to apply so the movement will be finished automatically.
Also when the move on X axis is done then on the Y axis, I get a one step backward before it continues regularly, I also want to get rid of this backward step.
Any ideas?!

thnx for help in advance.
Senan

[moderator1983]

---

@Theone2222 wrote:

I want to use Labview to control LANG MCL-2 stepping-motor controller. I managed to get the "square teeth" movement where the movement should be in steps and with each step a measurement should be done, but the problem is I can't figure out a proper condition to apply so the movement will be finished automatically.

---

What have you coded so far, can you share your code??

Should not condition be, count the total steps and as you already know the steps/revolution, you should determine when to stop measurement...??

[Theone2222]

I included what I have coded so far. it might be wrong approached...

[moderator1983]

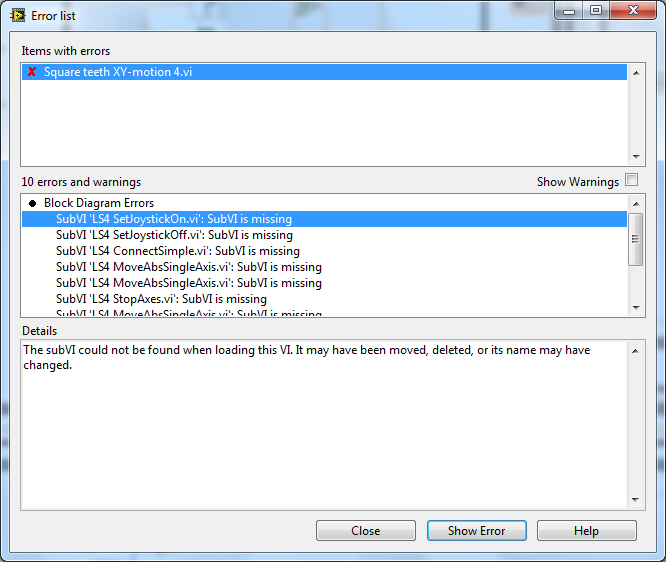

Dependencies are missing...!!

[Theone2222]

ah yes. they r sub VI's related to the lang steppermotor. how can I include them here?

[Theone2222]

basically all those sub VI's do is to read the command nad put it into actions -mainly steps in X or Y directions- or start and finish the connection with the motor...

[Theone2222]

those are the missing VI's

[Theone2222]

more

[Theone2222]

more

[Theone2222]

Those are all the dependencies needed but I edited the main VI to this one
