Usage of Event Structure and push button

[dogukan12324]

Currently, I’m unable to share the VI file, but based on the comments and my own research, I’ve tried three different approaches. However, since I couldn’t resolve the issue, I wanted to ask for your help.

[GerdW]

Hi dogukan,

---

@dogukan12324 wrote:

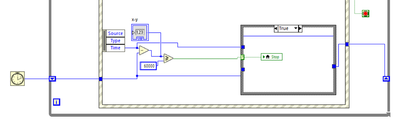

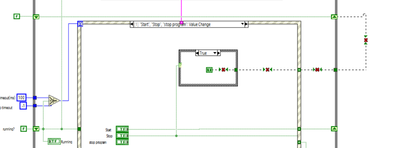

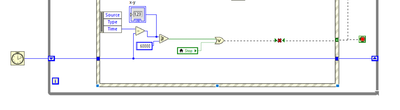

Currently, I’m unable to share the VI file, but based on the comments and my own research, I’ve tried three different approaches.

---

So you show 3 different images with just small parts of your block diagram!?

None of those images allow us to help you…

---

@dogukan12324 wrote:

However, since I couldn’t resolve the issue, I wanted to ask for your help.

---

You should step back and start over with the Training resources offered at the top of the LabVIEW board.

Especially focus on "THINK DATAFLOW!" as the basic LabVIEW mantra: you cannot connect two data sources with a wire!

• Why do you think you need to use a case structure to output a TRUE values from a case that is selected by a TRUE value???
• Why do you think you need to use a local variable of the "stop" button?
• Why do you still think you need to connect two data sources even though we recommended to use a boolean operation? You want to stop your VI on "time elapsed OR stop button"…

[dogukan12324]

I'm trying to understand what you've explained — this is my first LabVIEW application.

I tried to use the Case Structure like an if-else block. I thought that if the elapsed time reached 60 seconds, the structure would enter the True case and return a True value, which I could wire to the While Loop's stop terminal to end the program.

As a simple attempt, I also tried using a local variable of the Stop button in my application. My idea was to send a value to the Stop button when the time reached 60 seconds, so the system would stop. It was a basic test approach.

Best regards

[dogukan12324]

I have now completed the assignment... I finally realized my mistake — I had been struggling with this for days just because I didn't use the OR block... After adding the OR block and making a few small adjustments, I was able to complete it. I might have been a bit frustrating and annoying while working on this assignment... But completing this assignment taught me a lot. I sincerely thank all of you.

[GerdW]

Hi dogukan,

---

@dogukan12324 wrote:

I tried to use the Case Structure like an if-else block. I thought that if the elapsed time reached 60 seconds, the structure would enter the True case and return a True value, which I could wire to the While Loop's stop terminal to end the program.

---

So you need a case structure that outputs a TRUE when the selector condition is TRUE? why not use the selctor condition itself???

This is called "Rube-Goldberg code" and there is a whole thread with bad examples…

---

@dogukan12324 wrote:

As a simple attempt, I also tried using a local variable of the Stop button in my application. My idea was to send a value to the Stop button when the time reached 60 seconds, so the system would stop. It was a basic test approach.

---

You still don't understand you should use a boolean function (like OR) to handle two stop conditions?

Have you learned anything about boolean logic (independently from LabVIEW)?

Edit: we wrote our messages nearly the same time. It's nice to know you solved your homework!

[altenbach]

---

@dogukan12324 wrote:

...the structure would enter the True case and return a True value, which I could wire to the While Loop's stop terminal to end the program.

---

If you have a true case, you already have a true value wired to the condition terminal. Use that directly. No case structure needed.

[dogukan12324]

Hi,

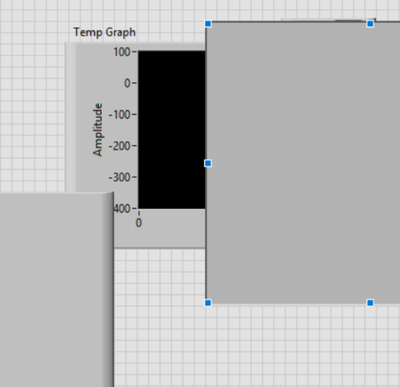

I want to place the system I designed into a box to make it look better. However, it stays behind the box, like in the example. How can I fix this?

Best regards.

[GerdW]

Hi dogukan,

---

@dogukan12324 wrote:

However, it stays behind the box, like in the example. How can I fix this?

---

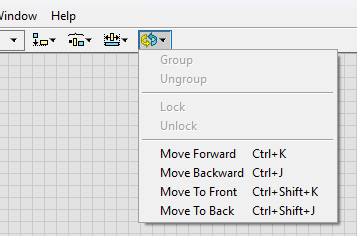

Use the Z order options in the frontpanel menu bar…

---

@dogukan12324 wrote:

I want to place the system I designed into a box to make it look better.

---

I don't think it will look "better" when you place rectangular decorations on the frontpanel.

Do you know any other software with a similar GUI design?

[Yamaeda]

---

@dogukan12324 wrote:

Hi,

I want to place the system I designed into a box to make it look better. However, it stays behind the box, like in the example. How can I fix this?

Best regards.

---
