blink a self made button

Hi all,



How to make a self-made button/control blink ?



Thank you very much for replySmiley Wink

0 Kudos
Message 1 of 5
(2,692 Views)
It doesn't matter if it is "self made" (which I assume is a highly-modifed custom control or an X-Control), make a Property Node, select the Blinking property, and set it to True.
Richard






0 Kudos
Message 2 of 5
(2,685 Views)

Broken Arrow wrote:
It doesn't matter if it is "self made" (which I assume is a highly-modifed custom control or an X-Control), make a Property Node, select the Blinking property, and set it to True.



... and makes sure your forground color is not the same as the blink color.



Ben

Retired Senior Automation Systems Architect with Data Science Automation LabVIEW Champion Knight of NI and Prepper LinkedIn Profile YouTube Channel
0 Kudos
Message 3 of 5
(2,676 Views)

The blink forground and background colors can be modified to suit your taste by changing the IDE Tools> Options> Enviorment> colors selections for bilnk foreground and backround.  this affects ALL controls in memory (they bilnk the same color).

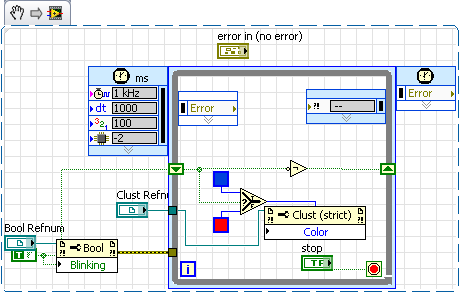

 pseudo blink.png



This snippet shows two methods to make a control blink- one in the IDE blink colors one that is adjustable


"Should be" isn't "Is" -Jay
0 Kudos
Message 4 of 5
(2,657 Views)

Jeff Bohrer wrote:

This snippet shows two methods to make a control blink- one in the IDE blink colors one that is adjustable


It's a good thing that you mentionned that you were showing2 methods..



After a quick glance at your diagram I went... !What?!  Oh..  okay..  (as I saw the next line..) 🙂



It's a good example of the two methods.



The most common (usual) approach is the property node.

0 Kudos
Message 5 of 5
(2,646 Views)
