the formula to draw the Spherical circle

Solved!
Go to solution

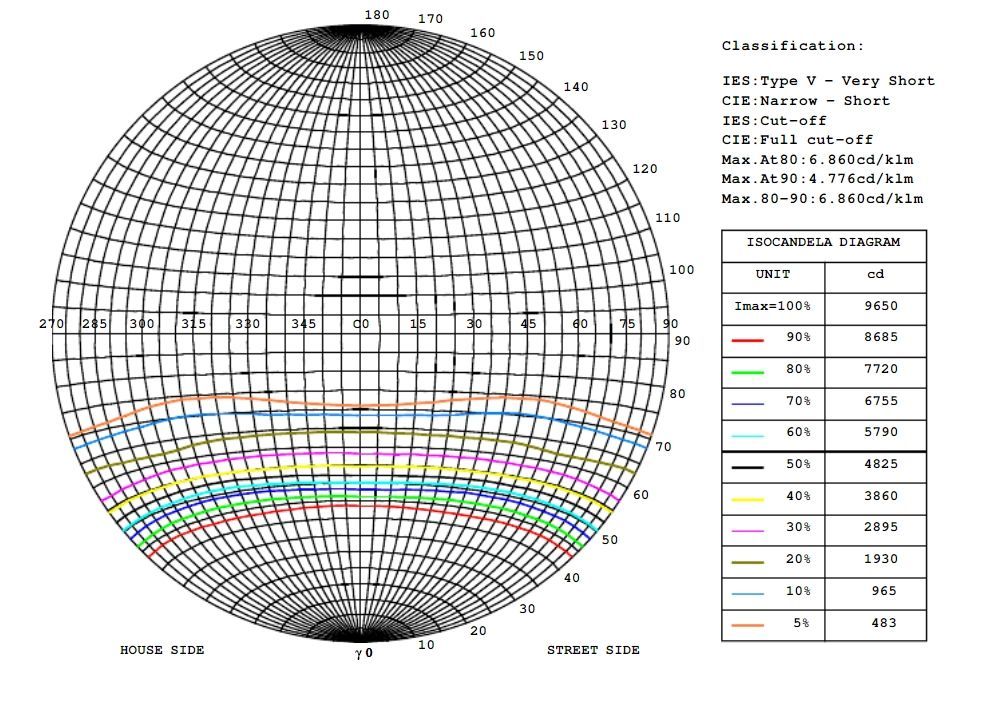

dose anyone know the formula to draw the Spherical circle like below, thanks.360č½Æä»¶å°åŠ©ę‰‹ęˆŖå›¾20190714221612.jpg360č½Æä»¶å°åŠ©ę‰‹ęˆŖå›¾20190608193306.jpg

0 Kudos
Message 1 of 8
(3,403 Views)

Do you know about spherical polar coordinates, as well as lines of longitude and latitude?  If we call the Radius "R = 1", the Polar angle "Phi", and the Azimuth angle "Theta", a circle of Longitude at a fixed Theta (and R) is simply drawn by having Phi go from 0 to pi (assuming 0 is the North Pole), while a circle of Latitude fixes Phi and lets Theta go from 0 to 2 pi (this will, of course, draw around the back side of the Globe, but you can just draw the front half-sphere by letting Theta go from 0 to pi).



Note that this is a 3-D graph (which LabVIEW can produce).  You can "do the math" and compute the equations for the 2D projection of the 3D plot, of course ...



Bob Schor



Bob Schor

0 Kudos
Message 2 of 8
(3,328 Views)

There's a 2D polar plot in Graphics & Sound>Picture Plots...



That might not answer the question. Or actually it does imply a "yes" (yes, somebody knows the formula to draw the Spherical circle).

0 Kudos
Message 3 of 8
(3,296 Views)

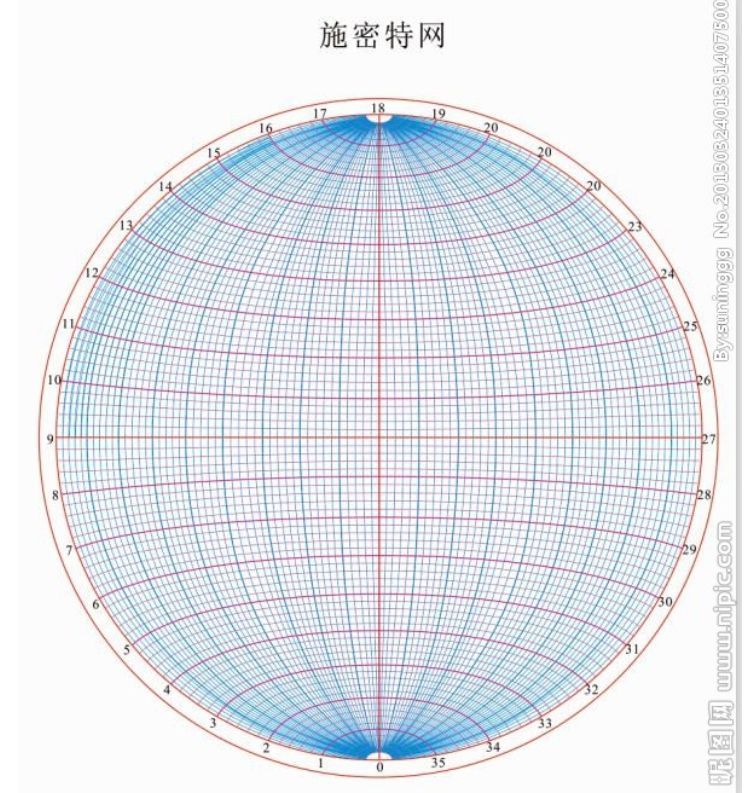

Your two grids are not the same, but look up "Wulff net" and "Schmidt net" to see which one is closer to your needs.

0 Kudos
Message 4 of 8
(3,288 Views)

Dear altenbach,



          Thanks for you reply, it seem like the Schmidt net after compare the graph, do you know how to draw it ?

thanks for your help in advance.


0 Kudos
Message 5 of 8
(3,275 Views)

I have found the formula in the attached, I will try to draw this Schmidt net (equal-area projection)。

0 Kudos
Message 6 of 8
(3,261 Views)

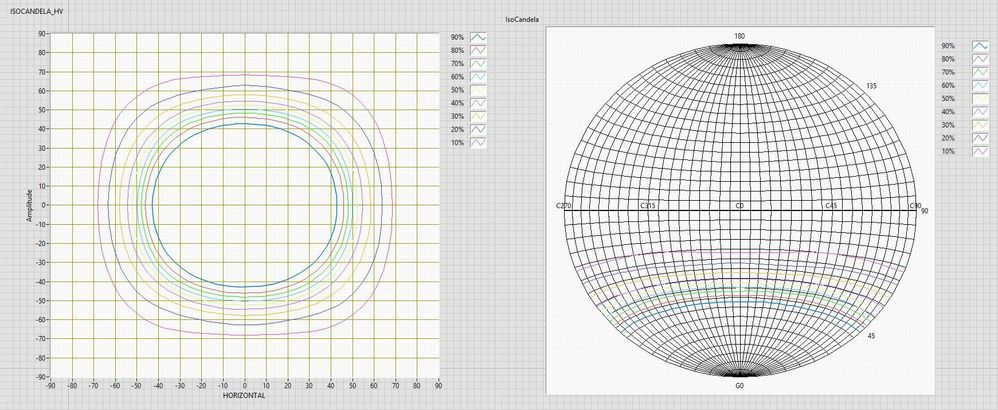

I have finished this graph.


0 Kudos
Message 7 of 8
(3,203 Views)
Solution
Accepted by topic author ronke
0 Kudos
Message 8 of 8
