How to create a sine Wave between 0 to 1 V using NI-6221

[mitkel_s]

I am using LabWindows 8.1.1 using Windows Vista and created a program where I am suppose to create a sine wave using AI/AO signals.  I create the sine wave between -1 to 1 V but when I try it  to do it between 0 to 1, it gives me an error.  I used the Multifunction-Synch AI-AO program to do this.  I need this to do it in real Time.

Thanks.

[Matthew_W]

 Hi Mitkel,

 The NI-6221 can generate a voltage that ranges +-10V. From the description of things, it sounds like you are varying the Output Minimum Value and Output Maximum Value's. If you change these values from  Output Minimum Value = -10 & Output Maximum Value = 10

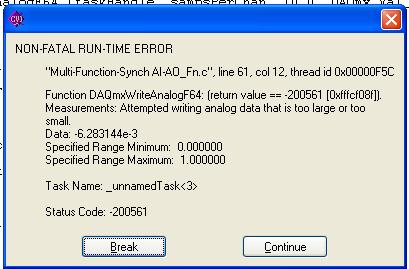

 to Output Minimum Value = 0 & Output Maximum Value = 1 then it will throw the following error:



If you are looking to generate a analog output voltage that ranges from 0-1V w/the NI-6221 then you will need to create your data array to be written such that it contains those values. For example:

 AO=0.0v
 AO=0.5v
 AO=1.0V


I hope this does clarify the error that you are seeing. Have a great evening!

Best regards,

MatthewW
Applications Engineer
National Instruments


Message Edited by Matthew W on 10-04-2007 05:27 PM

Message Edited by Matthew W on 10-04-2007 05:44 PM

[mitkel_s]

Thanks, yes that solved the problem that I have.
