USB-6451(OEM) connector pin out

USB-6451(OEM) connector pin out

‎05-06-2025 10:48 PM

Hi All,

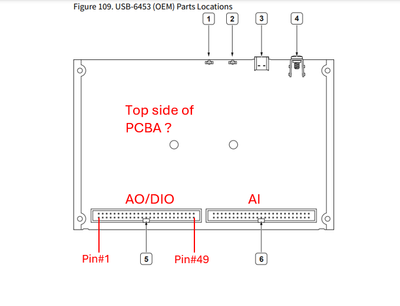

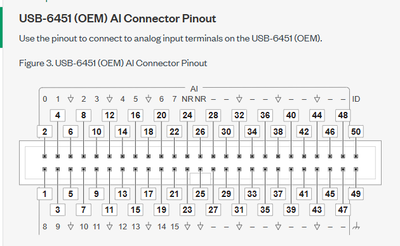

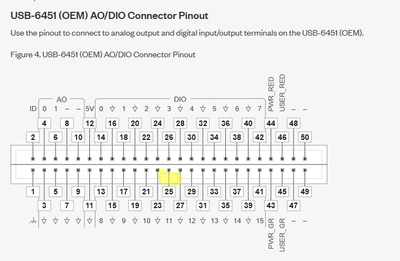

I am using USB-6451(OEM) for one of my application, not sure about the connector pin positions, need to confirm whether below consideration is correct.




0 Kudos
Message 1 of 2
(57 Views)
Reply

Re: USB-6451(OEM) connector pin out

‎05-14-2025 07:22 AM

I presume the shrouded header IDC connector is on the top of the PCBA.



Your assumption of pin# against the polarization shroud is correct,




Santhosh
Soliton Technologies
