Gain Calculation Tool

by on
‎03-20-2013 09:06 AM
- edited on ‎01-27-2017 04:34 AM by: Miguel_V

Name

Gain Calc

Included

LabVIEW Custom Instrument, Test Circuit

Compatibility

Multisim 11.x, Multisim 12.x

Description

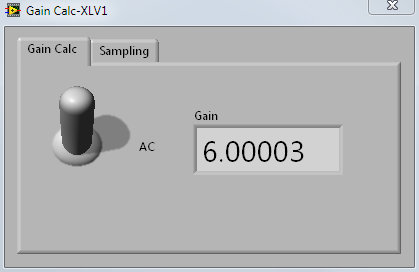

     Easy knowledge of the gain and phase information of an electric signal is very important for the validation of almost every circuit application in a SPICE simulation environment. Multisim offers different custom analysis tools for gain calculation, phase measurement and phase alignment. The other tools can be found under the respective names in the documents section. For the gain analysis tool, simply connect the input and output nodes of your circuit to this instrument and evaluate the AC and DC gains of it.

Instrument for Multisim 11 and 12.0 download

Instrument for Multisim 12.0.1 download



Test Circuit



Miguel V
National Instruments
