Waveform Calculator

[Miguel_V]

Name

Waveform Calculator

Included

LabVIEW Custom Instrument

Compatibility

Multisim 11.x, Multisim 12.x

Description

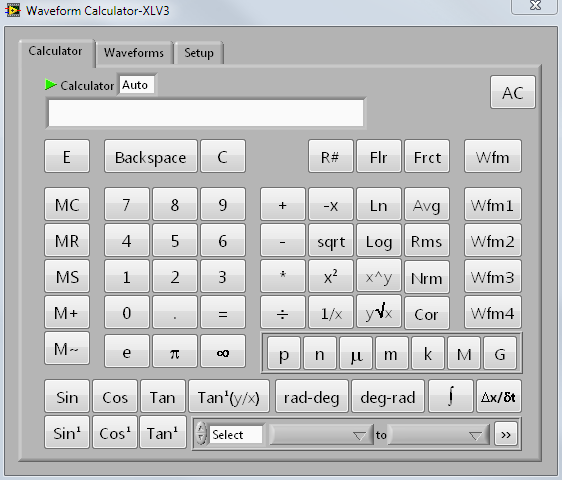

     The waveform calculator can help you visualize signal modulation through arithmetic. The calculator has a separate viewing tab for signal analysis and the options to set smapling rate, size and interpolation method of the data. It will generate a resulting wave depending on your input expression and can take inputs of up to 4 different signals. Not only that, but it also functions as a regular calculator.

Instrument for Multisim 11 and 12 download
