2N2905A COMPONENT

2N2905A COMPONENT

‎04-12-2021 04:57 AM - edited ‎04-12-2021 05:33 AM

Hello, I need a help. Cant find the component 2N2905A in Multisim. Is there any way or step by step to create this component?

0 Kudos
Message 1 of 2
(1,130 Views)
Reply

Re: 2N2905A COMPONENT

‎04-18-2021 04:31 PM

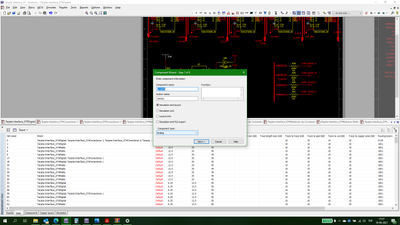

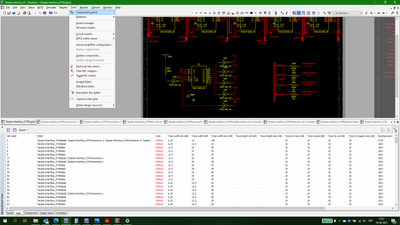

You can use a model from any spice compatible simulator, as OrCAD. You can download the .cir file and then import it in the Part Wizard.

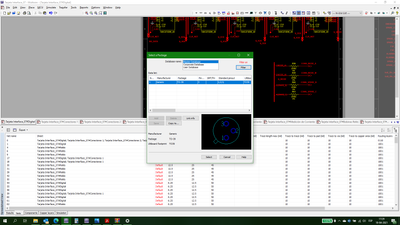

Also you can select packages and such.
Also Note that 2n2905 is actually in the component library in the bjt_pnp family

0 Kudos
Message 2 of 2
(1,049 Views)
