add value to waveform chart x-axis

[st168]

Hi,

I get the temperature, power and time from the equipment. I use the time as x-axis, and temperature and power as y-axis. How to add more number of value to x-axis?

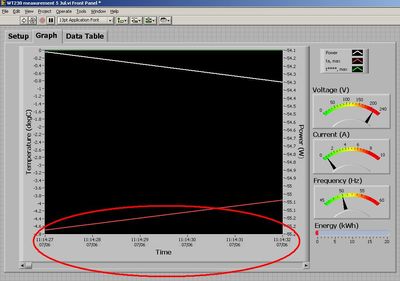

Above waveform chart has six element in x-axis. I want to more number of element in x-axis. The case similar to zoom out. Please advice. Thank you.

[cpan]

Hi st168,

If you want to add more scales within the same x-axis range for display, you could simply:
1. Right-click the Waveform Graph

2. Choose "X Scale" --> "Style" and select the one which locates at first column and third row.

Or if what you want is to expand the x-axis observation range, you could:
1. Right-click the Waveform Graph
2. Choose "X Scale" --> "Properties" and select "Scales" tab
3. Unchecked "Autoscale" and then enter the minimum and maximum number to set the observation scope.

Best Regards,
cpan
