NIYANTRA 2013 - Labview Based Liquid Sample Physical Properties Detector

[mrityunjoy89]

(Make sure you follow all the 3 steps involved in submission. This is only Step 2 of 3. For details, visit http://bit.ly/16iNfUL)

Contact Information

Name of the College : University Institute of Technology (The Burdwan University)

Name of the Team Members along with their respective current semester : Mrityunjoy Biswas, Bratati Ghatak, Saikat Acharrya

E-Mail Address & Phone Number of the Team Leader : mrisudbiswas@gmail.com, Phone - +919535089760

Name of the Faculty Guide : Quazi Md. Alfread

E-Mail Address & Phone Number of the Faculty Guide : quazi2007@gmail.com , +919434660276

Project Information

Project Title: Labview Based Liquid Sample Physical Properties Detector

Hardware & Software Used: ChipKit, 8051, Solenoid Valve, Strain Gauge, and some active and passive electronics components. Software- NI LabVIEW, Keil U vision, Proteus 7.7

What challenge/problem are you trying to solve through your application: We can know about physical properties of any liquid sample without chemical analysis. So our application is time saving. And another advantage is we can monitor what is going on inside the tank by PC.

How does your application solves the above mentioned challenge/problem: Using ChipKit DAQ we can send the properties of the Liquid sample to our LabVIEW code. A pre defined density chart will dispaly the equivalent OutPut to PC as well as 16x2 charecter display.

Description of Project: In this Labview based automated project we can ditermine the density of the Liquid by some strain Gauge. Now the data will send to ChipKit. And show the eqivalent output. The whole process will be going on automatically. And we can easily monitor it to our PC.

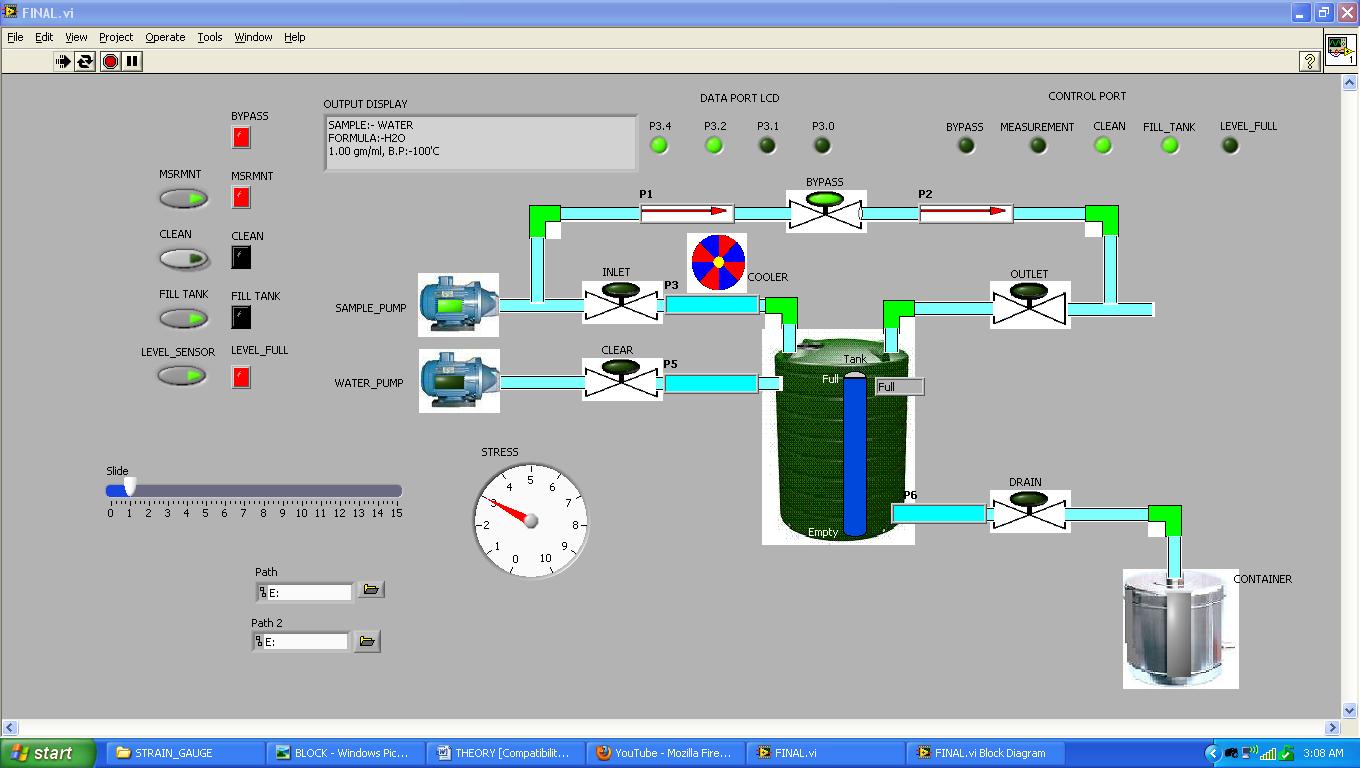

Insert Images Here:

YouTube Link of Video: http://www.youtube.com/watch?v=bWjxieZCGFo
