Project Information
Project Title:Finger Print Based Security System
Hardware & Software Used:
Hardware:
- Micro controller 8051
- FINGER PRINT MODULE
- Buzzer
- LCD Display 16×2
- Dc motor
- Driver unit.
Software:
- Keil
- Proteus
- Pcb editor
- 8051 simulator
What challenge/problem are you trying to solve through your application:
Now a day’s accurate personal identification is becoming more and more important. Usual means (smart cards, passwords…) have shown their limits (falsification, loss…) .so password and smart card is not actuuly safe for high level security
How does your application solves the above mentioned challenge/problem:
Biometrics (i.e. analysis of personal biological characteristics) can bring a satisfying answer to those latter problems. Currently fingerprint recognition is the most widely used technique for personal identification. Fingerprints are made up of locally parallel ridges with singular points (minutiae), and they constitute a unique permanent universal pattern. The use of ink and paper to get an image from a finger was used for a long time, but technological advances have enabled to automate the acquisition stage by means of solid-state sensors. These sensors exploit different techniques to acquire the image (pressure, electrical field, temperature…) and require a static (matrix sensor) or mobile finger position (sweeping mode sensor).
Description of Project:
Our project is developed to provide security for a Organization. In this project the fingerprint sensor sense the thumb impression of the corresponding person and that image will be compared with registered image, if the both images are unique, then the finger print device activates particular task like access control to a secured area, identification of the employee, etc.
The project has three modes: one is one in which you can identify the existing finger, second is in which we can add a new finger and third is in which we can delete the existing finger.
When a finger is kept at the finger print reader, it will give the information accordingly to microcontroller by sending appropriate commands to the reader and which is displayed on the LCD. If the information matches with the one within the device then the DC motor interfaced to the microcontroller responds accordingly. And if the information provided by the user is incorrect or mismatch in finger prints is detected then access is denied.
The main objective of the system is to security lock system using finger print scanning.
These project is used for secure storage for medications, jewelry, weapons, documents, and
other valuable. These utilize fingerprint recognition technology to allow access to only those whose fingerprints we choose.

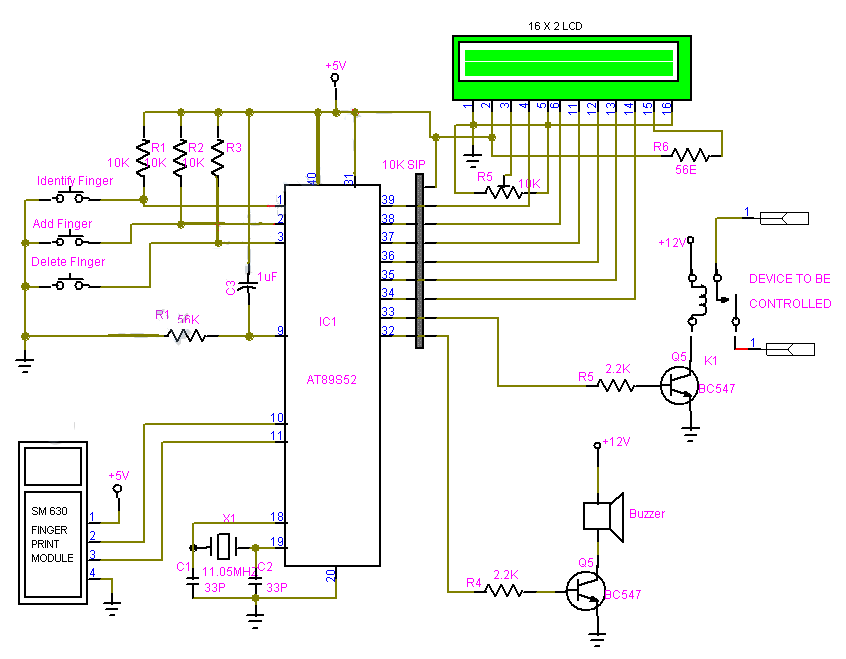

Insert Images Here:
.gif)
