Overview of what project is:
The glass harp or glass harmonica has been around for hundreds of years, and has always relied on having as separate glass for each note and on tedious manual tuning. By incorporating the NI myRIO and some basic hardware we can create a singing wine glass that can play multiple notes with the same glass and can tune itself.
This project demonstrates the measurement, signal processing, and control capabilities of the NI myRIO.

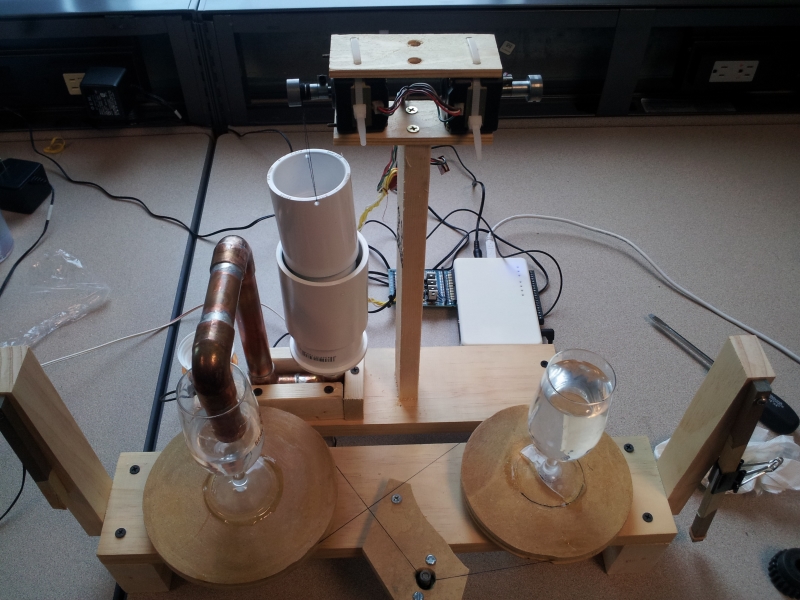

Picture of project:
Video of project
Parts List:
myRIO Parts List for Singing Wine Glass | ||
Breadboard or Perfboard | 1 | |
Stepper motor | 1 | KP4M4-001 |
MOSFET | 4 | IRLB8748PBF |
Diode | 8 | 1N408 |
Resistor | 4 | 15K Ohm |
DC Motor | 1 | RS-775VD |
Steel rod | ~2" | |
Bearings | 2 | Sized to fit the steel rod |
Power Supply | 1 | or battery |
Microphone | 1 | |
Wine glass | 1 | |
2" PVC Coupler | 1 | All pipe was from Home Depot |
2" to 3/4 thread adapter | 1 | |
1 1/2 PVC Coupler | 1 | |
1 1/4 PVC end cap | 1 | |
3/4" Copper pipe | ~15" | |
3/4" copper elbows | 4 | |
3/4" threaded end | 1 | |
Lumber | 1/2" MDF and misc 1x4 and 2x4 | |
Hot Glue | ||
Super Glue | ||
Thread | ||
Wood Screws | ||
Zip ties | ||
Wiring Diagram: Also attached Schematic BW.jpg
Instructions: my Singing Wine Glass Instructions Final.pdf attached
C or LV?: LabVIEW
Version of LV: 2013
Code: Singing Wine Glass.zip attached
