Wire End Point.vi
This has been discussed several times (for instance recently here).
When you don't know where a wire will end... or when you want to probe a VI output without having to drop an empty sequence structure... etc
USE THE Wire End Point.vi (attached, LV 2012)!

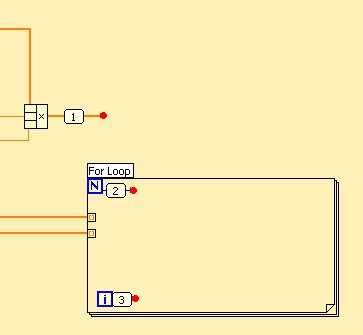

Example:
Disclaimer: The Wire End Point.vi is the fruit of more than a decade of LabVIEW wiring expertise and is therefore password-protected (Patent pending) and provided as-is without any documentation or warranty.
I thought I would release two related creations: the Wire End Wall and the Wire End Brick:
Wire End Wall:
connect up to 8 wires to this device. They are stackable, so you really don't have any limits...
Wire End Brick:
connect up to 28 wires to the brick. Notice that the brick is hollow, so you can see wires passing underneath it. Despite the little notch on the top left, the brick is quite robust. I have stacked many without any failure so far.
X. wrote:Disclaimer: The Wire End Point.vi is the fruit of more than a decade of LabVIEW wiring expertise and is therefore password-protected (Patent pending) and provided as-is without any documentation or warranty.
I have the gut feeling that I can write my own replacement code in a few seconds. 😄
