Multiple XY-Graphs from LV into Diadem.

[Mystogan]

Hi all,

I'm having trouble when trying to plot multiple XY-Graphs from LV into Diadem. As far as I know, Diadem may accept dynamic data type only.

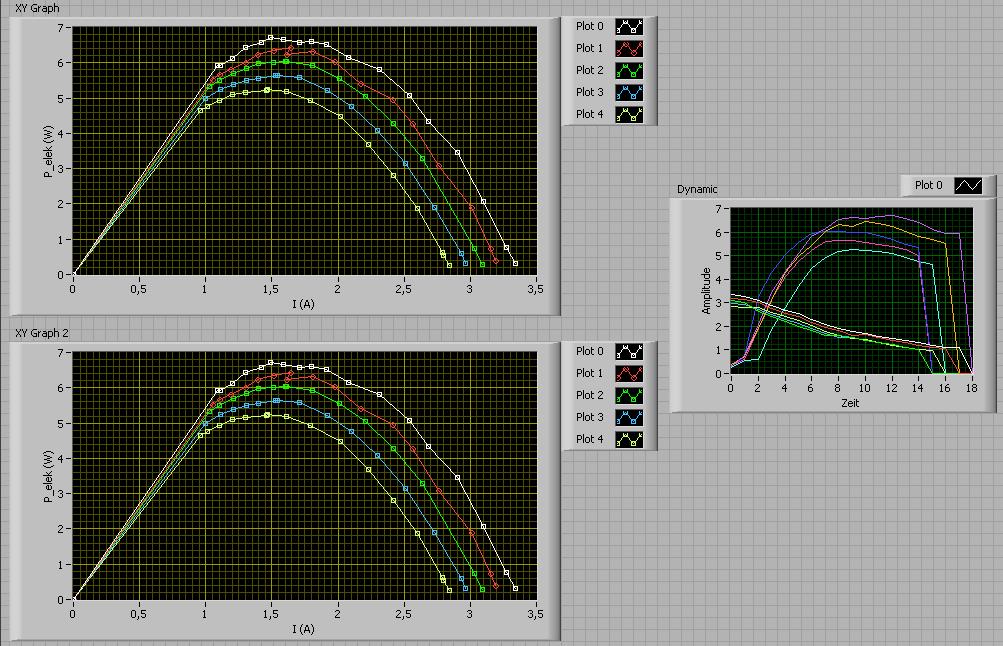

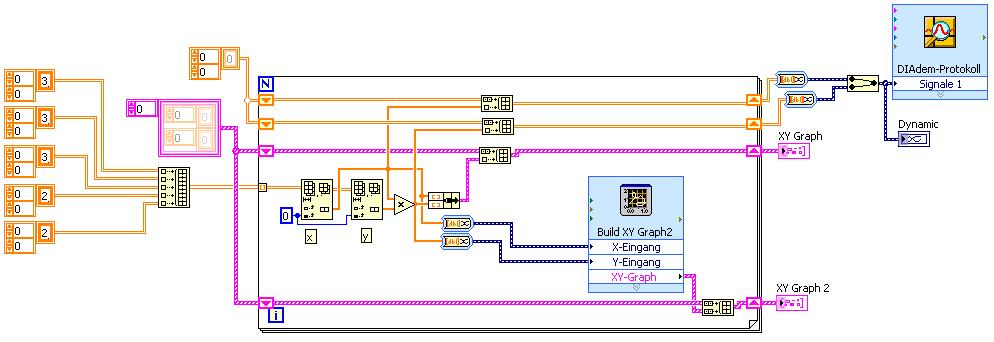

I have here multiple XY-Graphs and I need to plot them in one graph in Diadem. I could get them done in XY Graph and XY Graph 2 in LabVIEW.

But I couldnt get them plotted in Diadem or in the Dynamic-Graph (see preview). I've tried to use x-y, x-y in Diadem but didnt work out.

I might miss something which I dont really know. I've tried x-yyy method with only one array of x-axis values. It worked but I need to plot multiple

graphs with multiple x/y-axis values.



regards,

Yan

*somehow I cant attach anything 😞

[LarsR]

Hi Mystogan,

you have already posted your issue in the LABview Discussion Forum.

http://forums.ni.com/t5/LabVIEW/Plot-multiple-XY-Graphs-dynamic-data-type/m-p/2379634#M739479

regards,

Lars

[Mystogan]

Hi Lars,

thanks for reminding me about that. But it seems I still dont get anything helpful about the problem. I've posted here first, but dont get any help, thus I posted in LabVIEW subforum, but still dont get anything helpful. I'm sorry for double posts, this post can be deleted if it has to.

regards,

Yan.
