02-09-2022 08:48 AM
Dear all,
I'm planning to use the PXI-6515 modul with the SCB-100A break out box. I couldn't find a detailed pin out for the SCB-100A except of the picture below. Does someone has a document or a sketch showing how to connect digital inputs as as well digital outputs?
Thanks in advance.
Best,
Steve
02-09-2022 09:07 AM

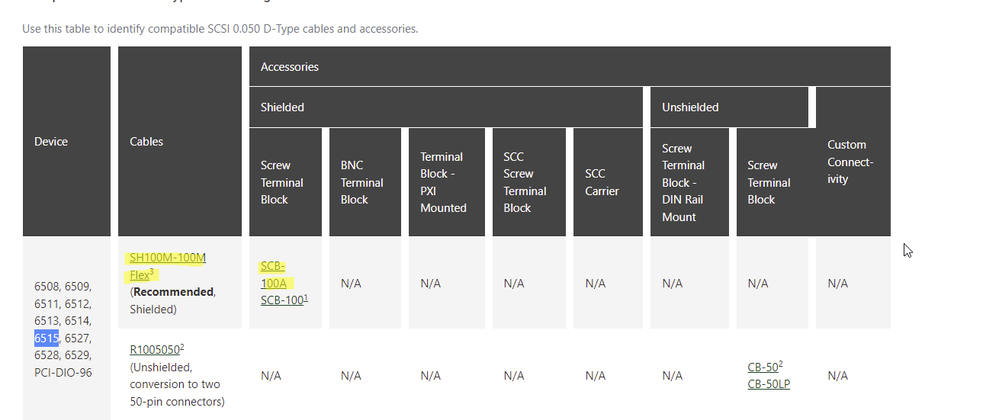

I believe you're using this combination of cable and breakout board.
Please refer to this document for the actual pinouts for 6515 - https://www.ni.com/pdf/manuals/376934a.pdf
02-09-2022 09:14 AM - edited 02-09-2022 09:16 AM
Hey Santhosh,

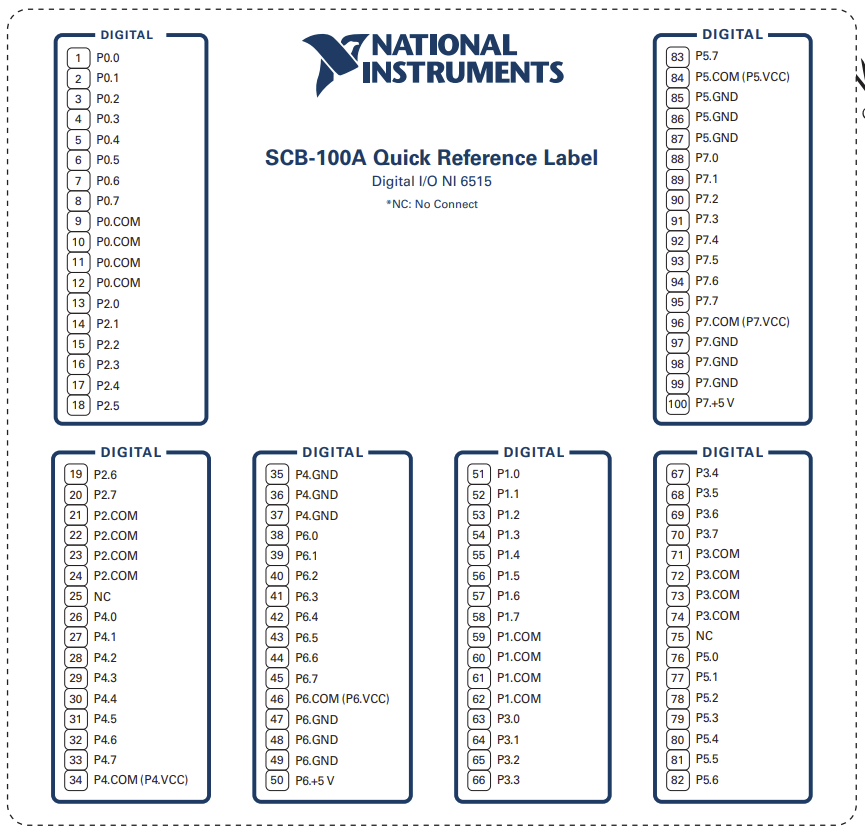

thanks for your fast response. The combination is correct. I already found the picture below in a community thread but I'm still confused
1.Whichs ports are digital inputs and which of these are outputs.

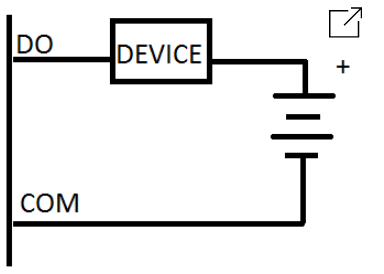

2. Where do I have to connect +24VDC and GND and my Device to control it via digital outputs (I wand to control a relay)
3. Where do I have to connect +24VDC and GND in case of reading a digital inputs signal?
Best,
Stephan
02-09-2022 11:26 AM

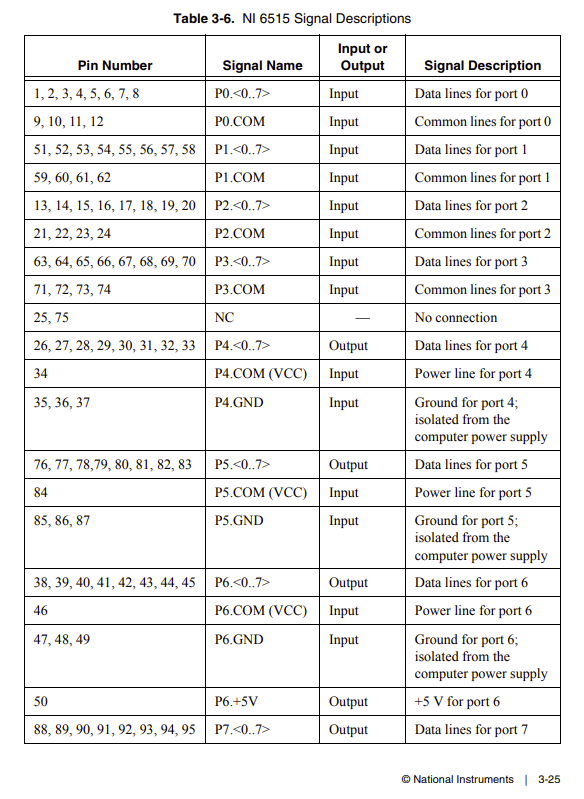

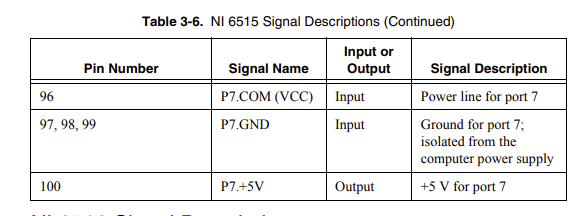

Description of each pin functionality is provided in the User manual

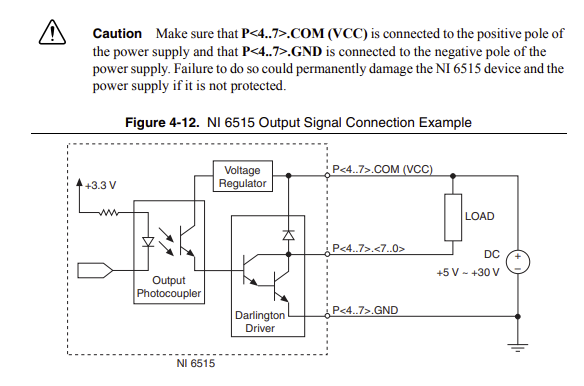

Here is an example connection provided in the user manual
