Combine 3 intensity graphs

[jodanjo]

Hi, I want to simulate heat distribution from 3 sources. Is it possible to combine/merge 3 looping intensity graphs into 1 intensity graph? I tried to use min max function but the result is weird.  Could you help me with some suggestions?

Thank you very much in advance!

[GerdW]

Hi Jodano,

---

@jodanjo wrote:

Hi, I want to simulate heat distribution from 3 sources. Is it possible to combine/merge 3 looping intensity graphs into 1 intensity graph?

---

Do you want to display those 3 images next to each other in a new graph?

Use array functions to build a larger graph…

Or do you want to use some math to calculate a combination of those 3 individual images?

What about adding them and change the scale? (Maybe you want to normalize those graphs to a common scale before adding them…)

[altenbach]

Can you explain your use of the word "weird"? What do you expect to see instead?

Also please give attached pictures reasonable names. Which one is the weird one???

[jodanjo]

The later one

[jodanjo]

I tried to use minmax function, but it only allows 2 inputs. So I link 3 inputs like this

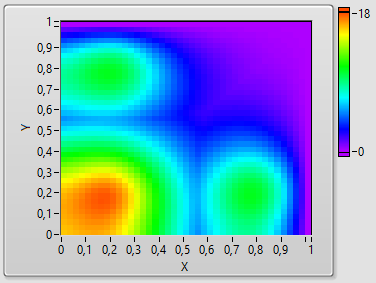

And the result is this

[altenbach]

What is weird about it?

[jodanjo]

This is heat distribution simulation, so the temperature value should spread more evenly. On the result, the left-bottom get larger, while the left-top and right-bottom part get smaller. So using min-max function is wrong here
