Generating PWM based on Analog Input

[yskpark]

Hi everyone,

I am using a CRio 9074 with NI940 to build a VI, that generates PWM Signal based on Voltage Input.

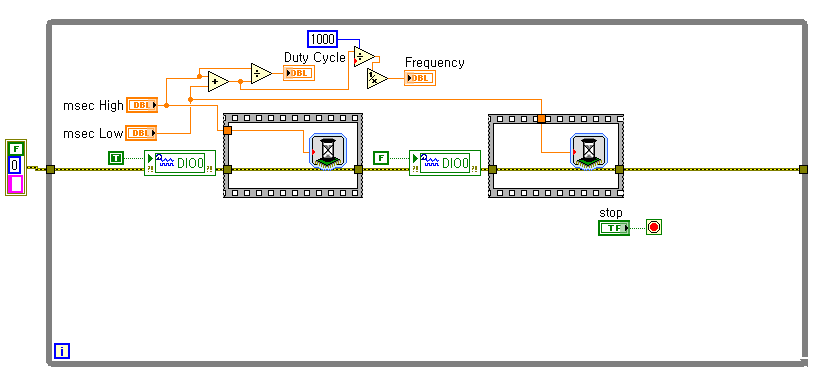

Till now I could build a VI (based on Scan Interface), that produce me a proper PWM-Signal (see attached Pic) with a given High&Low Pulse.

Now I would like to modify my VI in a way, that if a certain voltage comes as an input, that I can generate a certain  PWM signal.

For example: 5V as an Input  ---> PWM Signal with Frequency 5Hz by 50% duty

                        7V as an Input -->  PWM Signal with frequency of 5Hz by 70% duty

Does anyone have some Idea, how I can realize that?? I am quite new to labview, so I would appreciate any help!!

Best Regards

Yun

[TuiTui]

Hi yskpark,

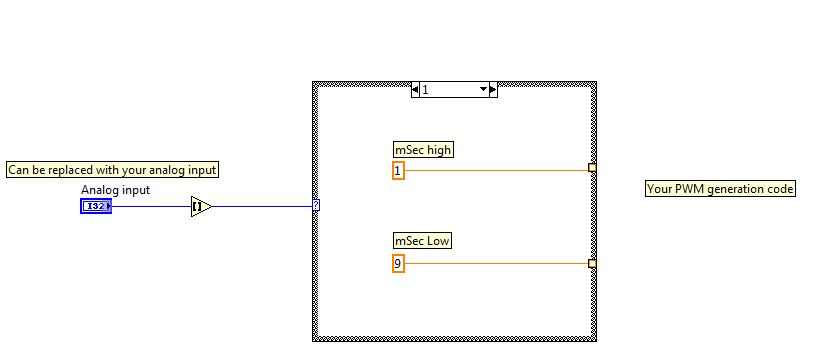

You can use case structure to make a conditional code. For example you wire an analog output value (Round to nearest can be used to make an easier judgement) to a condition terminal of case structure.

Inside case structure, you can create a calculation for you duty cycle as you want.

There are many resources teach you how to use case structure. Some of the link can be found below

http://www.youtube.com/watch?v=cgS3u0nupfs

https://www.ni.com/docs/en-US/bundle/labview-api-ref/page/structures/case-structure.html

Hope this help

Best regards,

TuiTui
