How create a 100µs impuls (arb wave)

Solved!
Go to solution

Hello



I created an arb waveform. Within Labview I can also change the time constant. However, on the hardware (USB-6361 with 10MHz DIO) I receive only 1ms impulses instead of 100µs impulses.



Currently I am working on a Labview Evaluation Licence. The  full labview licence is installed and available at the licence manager, however there are some problems. I am working on that. I mention this as this might also be the reason for my hardware problem.

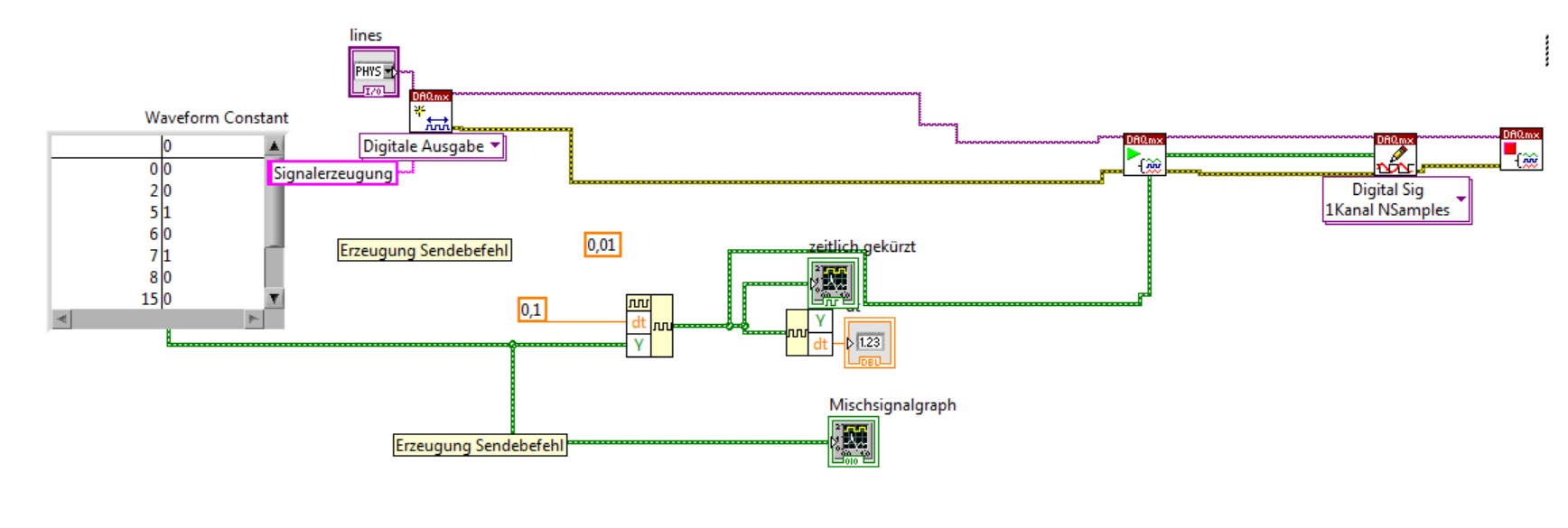

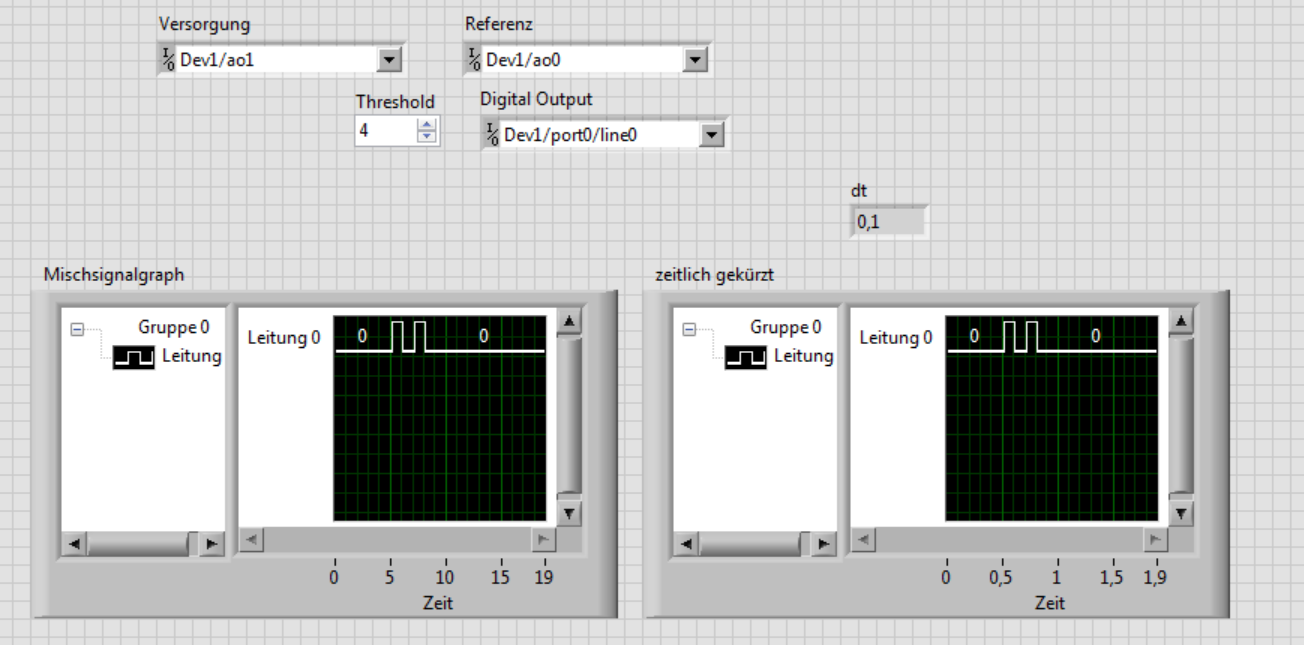

I included the VI. The first two analog signals are for creating a certain reference and supply voltage. The sencond one is the digital output which should be 100µs instead of 1ms which I measure with the ocsilloscope.



Thanks.

100µs_pict.PNG100µs_pict.PNGHello,







0 Kudos
Message 1 of 2
(2,219 Views)
Solution
Accepted by topic author db2nc

duplicate post!



Please stick with one thread for one question!

Best regards,
GerdW


using LV2016/2019/2021 on Win10/11+cRIO, TestStand2016/2019
