I'm trying to create a filled tank auto / Manual one tank

[DonRoonin]

I am trying to create an automatic tank filler where when the manual option is selected it will increase or decrease depending on what the user chooses and if it is set to automatic it will fill by itself.
The problem I am having is in the condition that it locks and only fills and empties indefinitely and when I try to select the other option it simply does not give me the change.

[GerdW]

Hi Don,

---

@DonRoonin wrote:

The problem I am having is in the condition that it locks and only fills and empties indefinitely and when I try to select the other option it simply does not give me the change.

---

Because you forgot to "THINK DATAFLOW!"…

When you want to change the condition inside the while loop then you should place that code inside the while loop (enum and case structure)!!!

[PalanivelThiruvenkadam]

---

@DonRoonin wrote:

I am trying to create an automatic tank filler where when the manual option is selected it will increase or decrease depending on what the user chooses and if it is set to automatic it will fill by itself.
The problem I am having is in the condition that it locks and only fills and empties indefinitely and when I try to select the other option it simply does not give me the change.

---

I suggest you to go through basic State Machine Architecture, which will help you to start your LabVIEW Learnings  in a better way.

[altenbach]

• As has been said in different words, your code is "inside out".
• There should be one top-level while loop containing all relevant code paths and terminals.
• All terminals need to be polled and indicators updated with each iteration. They should not be hidden inside cases.
• There is no need for any local variables and you can leave the stop button at latch action.
• The toplevel loop needs to be paced at a reasonable rate by placing a wait. Currently, the default state spins the loop millions of time per second, draining your battery or increasing your electric bill, while starving all other processes running on your computer. 😄
• When attaching code, do a "save for previous (e.g. LabVIEW 2019) so more can look at your VI. I can't at the moment.

[altenbach]

Here's a quick draft that you can use as a starting point...

[DonRoonin]

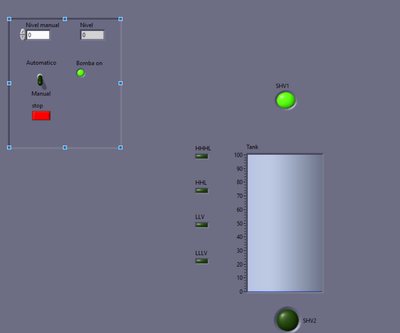

i want to create a filling and basing in automatic and manual mode. so far the filling and basing part is automatic but when i want to change to manual mode it doesn't change, it stays in automatic mode
i don't know how i could change it.

[altenbach]

I moved your post to your existing thread here. No need to scatter the discussion.

(Your last code is not scalable! Have you looked at my example? All you need is a simple state machine, no sequences, no inner loops, no mountains of local variables, no disconnected terminals, no property nodes. One outer loop with a shift register. Never do equal comparison on orange wires, even though it is safe here! All terminals must be labeled. You switch only gets read every 20 seconds according to dataflow principles. )

I can only look at your pictures because you did not "save for previous", 2020 or below.

[altenbach · Accepted solution]

See if this can give you some ideas (LabVIEW 2020)....

[DonRoonin]

how did you create the cluster with the leds and avoid the array to cluster not to give you an error message?

[altenbach]

• To create a cluster, you just place a cluster container and drop controls into it.
• Cluster have a fixed number of elements, so you need to set the cluster size for array to cluster (and that works of course only if all cluster elements are of the same type, boolean in this case).
• Nobody forces you to use a cluster, you could use index array with four output and wire to LEDs.
