create hyperlink

[Emna20]

Hi ,

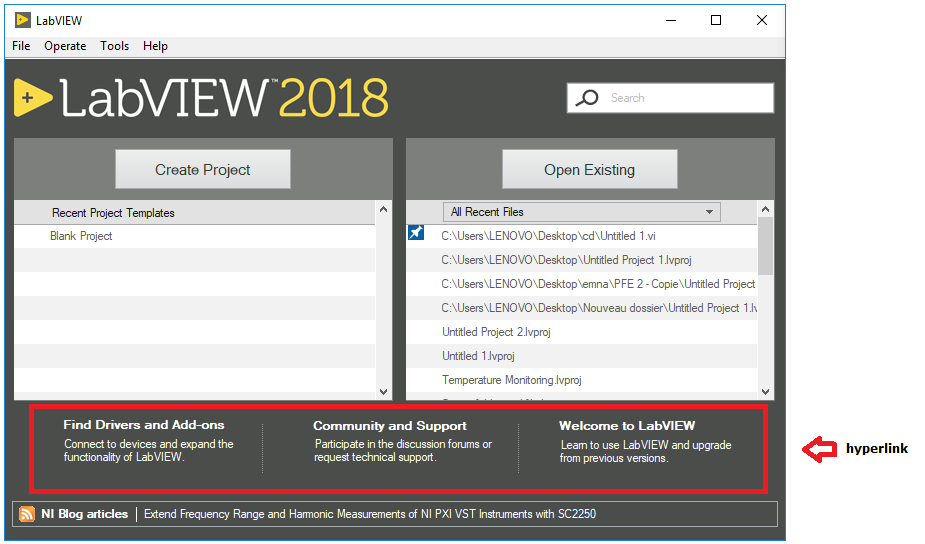

i want to create hyperlink like the one in LabVIEW home page .(see below) .(same design)

[GerdW]

Hi Emna,

i want to create hyperlink like the one in LabVIEW home page

And what is the problem?

Use an event structure to catch button value changes or mouse clicks and open a related website in a browser of your choice…

[Emna20]

hi ,

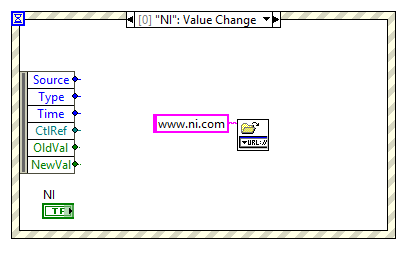

i know that i have to apply the code below . it works .but what i want is custom the button to look like the link in LabVIEW home page . and i don't know how to do it .

[GerdW]

Hi Emna,

create some (3 in the GSW example) transparent buttons and place them over some string indicators. Now you can decide whick link to apply based on the text shown in the indicators…

[Emna20]

Hi GerdW ,

please explain "place them over string indicators " you mean create -> property node -> string .?

Best regard .

[GerdW]

Hi Emna,

please explain "place them over string indicators "

Simple as it is:

1. Create a string indicator.
2. Create a button, place it next to the string, customize it to be transparent.
3. Set the button to front.
4. Move the button over the string indicator.

Finished: now you have a (transparent) button in front of a string indicator…
