Help Creating ROI on central line

[bnoronha]

Hi -

I'm having a bit of a problem using the IMAQ ROIProfile VI.

I'm currently working on a project where I need to extract the profile of center line of an image. I was able to do this when I set the ROI Profile to controle HOWEVER I want to do this programatically. I already have the coordinates of the line I just need to figure out how to unbundle the ROI Descriptor to manipulate just the coordinate array

Any Sugestions?

[Andrey_Dmitriev · Accepted solution]

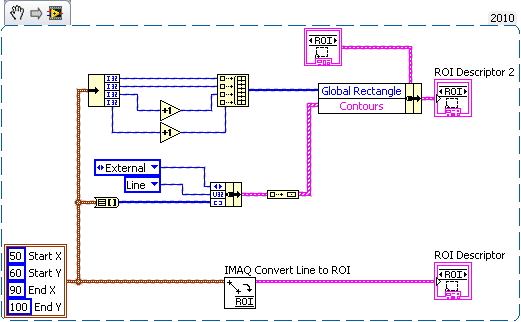

Something like that:

Otherwise you can use IMAQ Convert Line To ROI - probably its will be more easy for you.

Andrey.

[bnoronha]

the IMAQ Line to ROI worked perfectly!!!!

Thanks a million!!!!
