WPF Graph with GraphInteractionPalette hide Buttons

[Weber.S]

Hello again,

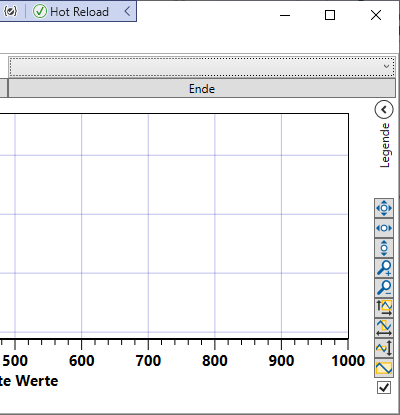

how can we hide the Buttons from the GraphInteractionPalette?

Like set in the Graph, we just want "ZoomHorizontal, PanHorizontal" (with ZoomToFit)

        <ni:Graph x:Name="niGraph" Grid.Column="0" Grid.Row="1" Grid.ColumnSpan="1" Grid.RowSpan="2"
                       VerticalAlignment="Stretch" HorizontalAlignment="Stretch"
                       DataSource="{Binding Data}" FontWeight="Bold" FontSize="15"
                       local:GraphExtensions.AxesSource="{Binding Axes}" local:GraphExtensions.PlotsSource="{Binding Plots}"
                       niPrimitives:GraphConfiguration.ProcessAllAsynchronousUpdates="False"
                       niPrimitives:GraphConfiguration.UseBackgroundProcessing="True"
                       niPrimitives:GraphConfiguration.UseBackgroundRendering="False"
                       Interactions="ZoomHorizontal, PanHorizontal">
        </ni:Graph>
        <Expander Grid.Column="1" Grid.Row="0" Grid.RowSpan="2" ExpandDirection="Left" IsExpanded="False"
                  VerticalAlignment="Stretch" HorizontalAlignment="Stretch" Header="{Binding}">
            <Expander.HeaderTemplate>
                <DataTemplate>
                    <Grid VerticalAlignment="{Binding VerticalAlignment, RelativeSource={RelativeSource AncestorType=ContentPresenter}, Mode=OneWayToSource}">
                        <Grid.RowDefinitions>
                            <RowDefinition Height="Auto" />
                            <RowDefinition Height="*" />
                            <RowDefinition Height="Auto" />
                        </Grid.RowDefinitions>
                        <ni:GraphInteractionPalette Grid.Row="2" Graph="{Binding ElementName=niGraph}"
                                                    Orientation="Vertical" />
                        <!--<TextBlock Grid.Row="1" Text="T" />-->
                        <TextBlock Grid.Row="0" Text="Legende" HorizontalAlignment="Center">
                            <TextBlock.LayoutTransform>
                                <TransformGroup>
                                    <RotateTransform Angle="-90"/>
                                </TransformGroup>
                            </TextBlock.LayoutTransform>
                        </TextBlock>
                    </Grid>
                </DataTemplate>
            </Expander.HeaderTemplate>
            <Expander.Content>
                <ni:Legend ItemsSource="{Binding ElementName=niGraph, Path=Plots}"/>
            </Expander.Content>
        </Expander>

.NET-Framework 4.7.2 and 4.8

Measurement Studio 2019

Edition: Enterprise
Integration Version: 19.0.4.49154

[phansen · Accepted solution]

You can assign the InteractionsSource property with the specific interactions you want. In XAML:

<ni:GraphInteractionPalette ...>
    <ni:GraphInteractionPalette.InteractionsSource>
        <x:Array Type="ni:GraphInteraction">
            <x:Static Member="ni:GraphInteraction.PanHorizontal" />
            <x:Static Member="ni:GraphInteraction.ZoomHorizontal" />
            <x:Static Member="ni:GraphInteraction.ZoomToFit" />
        </x:Array>
    </ni:GraphInteractionPalette.InteractionsSource>
</ni:GraphInteractionPalette>

[Weber.S · Accepted solution]

Hello Paul,

thanks for the answer!

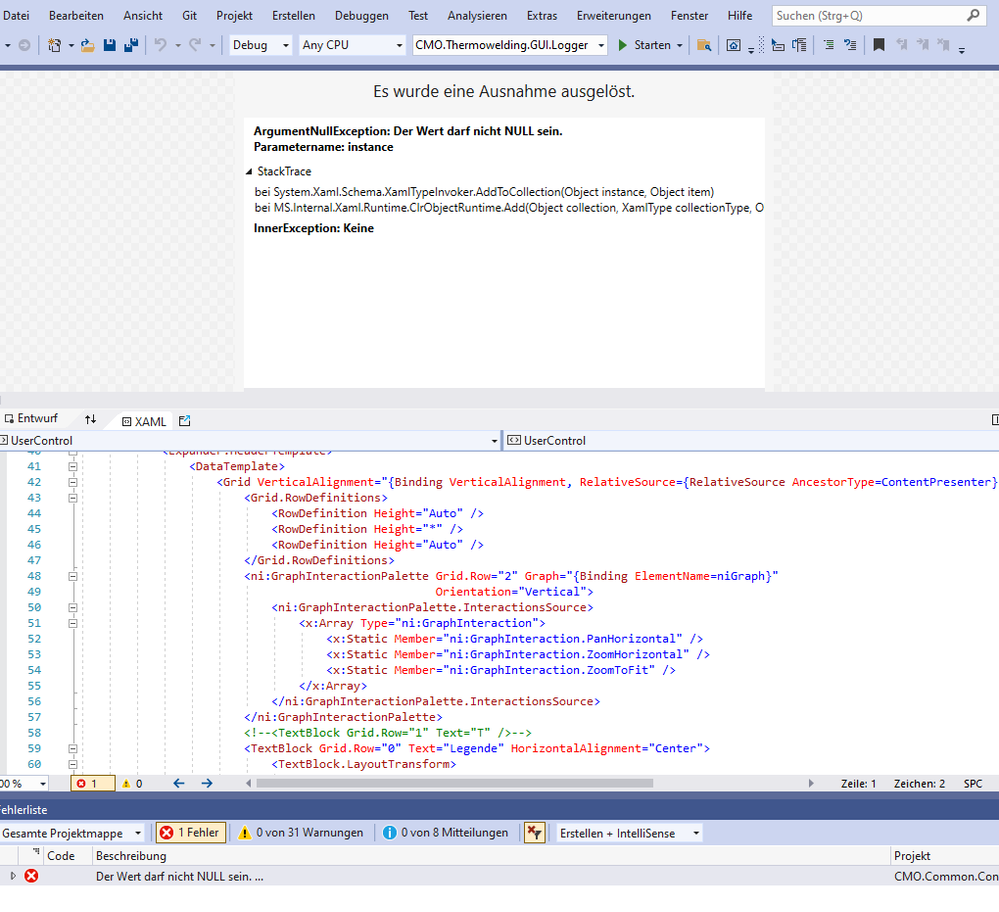

But i get an NullReferenceException with your Example.

Stacktrace:

bei System.Xaml.Schema.XamlTypeInvoker.AddToCollection(Object instance, Object item)
bei MS.Internal.Xaml.Runtime.ClrObjectRuntime.Add(Object collection, XamlType collectionType, Object value, XamlType valueXamlType)

<UserControl x:Class="CMO.Common.Controls.NI.Graph.GraphBindable"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:ni="http://schemas.ni.com/controls/2009/xaml/presentation"
             xmlns:niPrimitives="http://schemas.ni.com/controls/2009/xaml/presentation/primitives"
             xmlns:niData="clr-namespace:CMO.Common.Controls.NI.Example"
             xmlns:local="clr-namespace:CMO.Common.Controls.NI.Graph"
             mc:Ignorable="d"
             d:DataContext="{d:DesignInstance {x:Type niData:DataholderGraphWpf}, IsDesignTimeCreatable=True}"
             d:DesignHeight="450" d:DesignWidth="800">
    <Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*" />
            <ColumnDefinition Width="Auto" />
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto" />
            <RowDefinition Height="*" />
            <RowDefinition Height="Auto" />
        </Grid.RowDefinitions>
        <ni:GraphThumbnail x:Name="niThumb" Grid.Column="0" Grid.Row="0" GraphAdapter="{Binding ElementName=niGraph}" MaxHeight="50" Visibility="Collapsed" />

        <ni:Graph x:Name="niGraph" Grid.Column="0" Grid.Row="1" Grid.ColumnSpan="1" Grid.RowSpan="2"
                       VerticalAlignment="Stretch" HorizontalAlignment="Stretch"
                       DataSource="{Binding Data}" FontWeight="Bold" FontSize="15"
                       local:GraphExtensions.AxesSource="{Binding Axes}" local:GraphExtensions.PlotsSource="{Binding Plots}"
                       niPrimitives:GraphConfiguration.ProcessAllAsynchronousUpdates="False"
                       niPrimitives:GraphConfiguration.UseBackgroundProcessing="True"
                       niPrimitives:GraphConfiguration.UseBackgroundRendering="False"
                       Interactions="ZoomHorizontal, PanHorizontal">
        </ni:Graph>

        <Button x:Name="cmdShowThumb" Grid.Column="0" Grid.Row="1" Content="Show Thumb" Click="cmdShowThumb_Click"
                HorizontalAlignment="Left" VerticalAlignment="Top" />

        <Expander Grid.Column="1" Grid.Row="0" Grid.RowSpan="2" ExpandDirection="Left" IsExpanded="False"
                  VerticalAlignment="Stretch" HorizontalAlignment="Stretch" Header="{Binding}">
            <Expander.HeaderTemplate>
                <DataTemplate>
                    <Grid VerticalAlignment="{Binding VerticalAlignment, RelativeSource={RelativeSource AncestorType=ContentPresenter}, Mode=OneWayToSource}">
                        <Grid.RowDefinitions>
                            <RowDefinition Height="Auto" />
                            <RowDefinition Height="*" />
                            <RowDefinition Height="Auto" />
                        </Grid.RowDefinitions>
                        <ni:GraphInteractionPalette Grid.Row="2" Graph="{Binding ElementName=niGraph}"
                                                    Orientation="Vertical">
                            <ni:GraphInteractionPalette.InteractionsSource>
                                <x:Array Type="ni:GraphInteraction">
                                    <x:Static Member="ni:GraphInteraction.PanHorizontal" />
                                    <x:Static Member="ni:GraphInteraction.ZoomHorizontal" />
                                    <x:Static Member="ni:GraphInteraction.ZoomToFit" />
                                </x:Array>
                            </ni:GraphInteractionPalette.InteractionsSource>
                        </ni:GraphInteractionPalette>
                        <!--<TextBlock Grid.Row="1" Text="T" />-->
                        <TextBlock Grid.Row="0" Text="Legende" HorizontalAlignment="Center">
                            <TextBlock.LayoutTransform>
                                <TransformGroup>
                                    <RotateTransform Angle="-90"/>
                                </TransformGroup>
                            </TextBlock.LayoutTransform>
                        </TextBlock>
                    </Grid>
                </DataTemplate>
            </Expander.HeaderTemplate>
            <Expander.Content>
                <ni:Legend ItemsSource="{Binding ElementName=niGraph, Path=Plots}"/>
            </Expander.Content>
        </Expander>
        <CheckBox x:Name="chkRefresh" Grid.Row="2" Grid.Column="2" IsChecked="{Binding UseAutomaticRefresh}"
                  ToolTip="Automatische Aktualisierung aktiv?" HorizontalAlignment="Center" />
    </Grid>
</UserControl>

When i set the List in Code-behind and bind it to the Proprty it will work.

                        <ni:GraphInteractionPalette Grid.Row="2" Graph="{Binding ElementName=niGraph}"
                                                    Orientation="Vertical" InteractionsSource="{Binding GraphInteractions, ElementName=userControl}">
                            <!--<ni:GraphInteractionPalette.InteractionsSource>
                                <x:Array Type="ni:GraphInteraction">
                                    <x:Static Member="ni:GraphInteraction.PanHorizontal" />
                                    <x:Static Member="ni:GraphInteraction.ZoomHorizontal" />
                                    <x:Static Member="ni:GraphInteraction.ZoomToFit" />
                                </x:Array>
                            </ni:GraphInteractionPalette.InteractionsSource>-->
                        </ni:GraphInteractionPalette>

    public partial class GraphBindable : UserControl
    {
        public List<GraphInteraction> GraphInteractions { get; set; }
        public GraphBindable()
        {
            this.GraphInteractions = new List<GraphInteraction>();
            this.GraphInteractions.Add(GraphInteraction.PanHorizontal);
            this.GraphInteractions.Add(GraphInteraction.ZoomHorizontal);
            this.GraphInteractions.Add(GraphInteraction.ZoomToFit);
            if (!DesignerProperties.GetIsInDesignMode(this))
            {
                this.DataContext = new DataholderGraphEmpty();
            }
            try
            {
                InitializeComponent();
            }
            catch (Exception ex)
            {
                int i = 0;
            }
            this.niThumb.ViewportRelativeHorizontalRangeChanging += NiThumb_ViewportRelativeHorizontalRangeChanging;
        }
    }

Where comes the null-reference from?

And sorry for the late responce, i am on Holiday and just frequently check my business-mails.

Thanks!

[phansen]

Strange: using that XAML in either the main window or the user control works fine for me (I never see a null exception). Based on the exception message, I agree the XAML array is somehow the cause.

That said, the XAML-only approach was just to minimize the size of the example. Your workaround using a binding is more common, and very appropriate in this situation.
