SMU PXIe-4139 Signal Generation and Real-time Measurement using LabView

SMU PXIe-4139 Signal Generation and Real-time Measurement using LabView

‎07-08-2025 11:43 PM

Hello,

I have a PXIe-4139 SMU. I have a customized current signal profile stored in a CSV file. I want to use the SMU to send out the signal and measure the response of the test subject in the meantime.
Is it possible? Is there a LabVIEW example that demos this or a similar idea? Even just a sine wave example would be great. Thanks.




View All (5)
0 Kudos
Message 1 of 2
(166 Views)
Reply

Re: SMU PXIe-4139 Signal Generation and Real-time Measurement using LabView

‎07-09-2025 10:34 PM

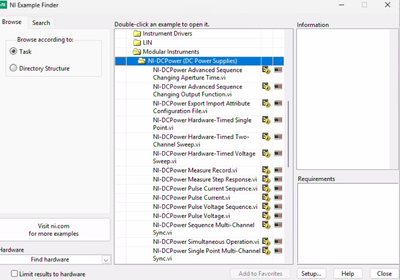

Checkout this example, modify it to source current instead of voltage, change the limit and range configurations to opposite.




Add in the logic to read the CSV for profile and send it to the DC power API as the sequence.

Santhosh
Soliton Technologies

New to the forum? Please read community guidelines and how to ask smart questions

Only two ways to appreciate someone who spent their free time to reply/answer your question - give them Kudos or mark their reply as the answer/solution.

Finding it hard to source NI hardware? Try NI Trading Post
0 Kudos
