As soon as we have more complicated data structures (e.g. clusters of arrays), a large portion of the FP real estate is wasted taken up by borders, frames and trims, etc.



We need a palette full of "Amish" 😉 controls, indicators, and containers that eliminate all that extra baggage. We have a few controls already in the classic palette, but this needs to be expanded to include all types of controls, including graphs, containers, etc.



A flat control consists of a plain square and some text (numerical value, string, ring, boolean text, etc). A flat container is a simple borderless container.  A flat graph is a simple line drawing that would look great on a b&w printer. A flat picture ring looks like the image alone.



They have a single area color and a single pixel outline, if both have the same color, the outline does not show. They can also be made transparent, of course. If we look at them in the control editor, there are only very few parts.



Now, why would that be useful?



Let's have a look a the data structure in the image. There is way too much fluff, distracting from the actual data. If we had flat objects, the same could look as the "table" below. Note that this is now the actual array of clusters, no formatting involved! It is fully operational, e.g. I can pick another enum value, uncheck the boolean, or enter data as in the cluster above.



Many years ago in LabVIEW 4, I actually made a borderless cluster container in the control editor and it looked fine, but it was difficult to use because it was nearly impossible the grab the right thing with the mouse at edit time.



The main problem of cours is that the object edges completely overlap, making targeted seletion with the mouse impossible. (For example the upper right corner pixel is the corner of an array, a cluster, another array, and an element at the same time.)



So what we need is a layer selection tool that allows us to pick what we want (similar to tools in graphics editing software). It could look similar to the context help shown in the picture with selection boxes for each line. Picking an object would show the relevant handles so we can intereact with the desired object. Another possibility would be to hover over the corner and hit a certain key to rotate trough all near elements until the right element is selected, showing it's resize handles. I am sure there are other solutions.



As a welcome side effect, redrawing such a FP is relatively cheap.



Message Edited by altenbach on 06-03-2009 09:20 AM
Message Edited by altenbach on 06-03-2009 09:20 AM

The title says it all: The property dialog of controls should allow inspecting and changing the default value.



Here's how it could look like.





Sometimes I wand to re-define a default value without actually changing the current value.



current steps

  • copy the current value elsewhere
  • enter the desired default value
  • right-click...data operations...make current value default
  • restore the original value (could lose data in case of DBL!)

After implementing the idea

  • right-click...properties...enter default value...OK.







See the picture below for an example of (what I consider to be) a frustrating "feature".

Why delete the elements? Keep the elements and the element style types as is, just convert my cluster to the new style type.

Arrays also do this, but since we tend to spend more time designing clusters, it's far more frustrating than arrays.








There's a common convention in LabVIEW where if a control is not a required input, you place the default value in parentheses:






 For the most part this make sense and is useful when calling VIs, but there is one place where it's really annoying:










We know there's no error by default. I suggest that NI simply remove this. This can be done today by going to <vi.lib>\errclust.llb and modifying the control, but that's annoying to do with every installation.



I would even go so far as to say that NI should write a VI which will go through vi.lib and remove the text from all the existing VIs. I doubt this would have any backward compatibility issues, because I think the only place where those would be relevant is if someone is calling a VI in vi.lib dynamically AND setting the error in value, and frankly, those people deserve to be punished.





Preamble:

Just following up on a sub-idea raised within this recent idea from tst: LabVIEW should break VIs which have hidden code.  I *almost* like tst's idea, but IMO it is a bit too heavy-handed:

  • YES, I want better information when there is hidden code on my diagram, but...
  • NO, I don't want my code to break!



The Idea:

If a structure hides code beyound it's boundary, then provide a visual indication. For example, the edge of the structure could be coloured red to alert the user that something unexpected is going on.






  It would be very usefull to know which VIs are still running.


Resizing the front panel so it is correct when running the VI is still very tedious and can easily mess up during editing. The problem is even more severe for Xcontrols, because their runtime size is often very small so there is not even enough room to e.g. display all the tools in the tool bar during editing. Once the runtime size is correctly set, all it needs is a double-click on a terminal that has its FP item hidden outside the visible area and everything on the FP shifts and messes up.



We need three things:

  1. An "edit time" FP size that is "comfortably big" so we can see the entire toolbar and possibly also helper controls and even maybe some comment text intended for the programmer that are outside the operator area and only used for debugging and such.
  2. A "run time" FP size that matches exactly what the operator sees during running.
  3. A special decoration or other visual cue during editing that indicates the FP area that will be visible at runtime.

 We already have the crosshair in the upper left corner when showing the grid, so that could be defined as the upper left corner at runtime by default. All we need is define the upper left and lower right corner and the runtime FP area is uniquely defined. As a visual cue, everything outside the runtime area could be a shade darker or tinted differently than normal to indicate that fact. Running the VI would snap the FP boundaries to the bright area.



Then we also need handles to move any of the boundaries at single pixel increments. A control that scales with the front panel would simply scale to the bright area instead. Of course a legacy mode for older VIs that did not have this feature during their creation needs also to be supported.



The example image shows a reddish transparent area (just to throw out another idea, maybe a slightly darker grey would be better). This is one of my own subVIs that demonstrates the problem at hand. At runtime, only the progress bar should be visible, while at edit time, I want to see all controls, because I might need them e.g. to wire the connectors. It is not easy to switch between the two sizes.



(Of course we can currently program around all that by setting windows parameters via property nodes, but it is ugly, inefficient, and tedious.)







I use the conditional disable structure in my projects to turn debug options on and off.

At the moment before every build I have to go into the project properties and make sure that DEBUG variable is set to FALSE and after the build I have to change it back.

You can get around this by automating you build but an option in the build specifications would simplify this.



It would make life much more convenient if there were a list of the available (non-system) conditional disable symbols in the application builder dialog where the appropriate variables for the build could be set. This would also allow for a simple duplication of a build spec to have one with DEBUG=TRUE, and one with DEBUG=FALSE.




...the ability to bulk-create References, Local Variables, Property Nodes...

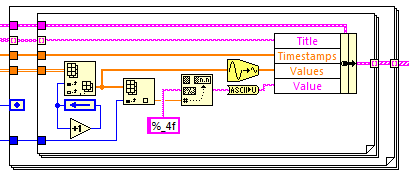

Oftentimes, rearranging or reordering a Bundle by Name or Unbundle by Name for clusters can yield fewer wire crossings. For instance, below, wire crossings can be eliminated by moving "Timestamp" to the bottom of the Unbundle and "Value" second to bottom on the Bundle:



20985iEE7ABCE2AA5DD1B3



The current process of moving one of these elements:

  1. Increase the size of the node using the Resize Handles on top or bottom, or select "Add Element" from Context Menu (and hope you remember if it adds and element below or above the cell you are clicking on!
  2. Wire to the new element, and deal with deleting the old wire
  3. Delete the old accessor using either Resize Handles or "Remove Element" from Context Menu

This can be laborious. Instead, I would like a way to quickly reorder the elements. I have a few ideas how this can be accomplished:

  1. Context menu with a "Move Up" and "Move Down" action (not so elegant)
  2. A pop-up window that allowed rearrangement (think "Rearrange Cases..." on Event Handler or Case Structures)
  3. A native drag-and drop on the Unbundle/Bundle node itself. This could be realized given the current "click regions" on the node (hover your mouse and sweep horizontally over one of these nodes... you'll discover the 4 regions). The two "Arrow" regions currently move the node on the BD, but they could be used to rearrange the node (see below)

20991iC0D9F95AD3E82BBE



Just throwing out some ideas, I'm not stuck on any one. So, the idea you are voting for: Provide a User Interface for quickly rearranging elements on a Bundle or Unbundle by Name.

It would be nice, if the different kind of LabVIEW windows would have slighty different icons within the windows taskbar. It would be easier to quickly identify BD / FP / project / Ctrl / etc. windows in the taskbar.



This suggestion has also been made at

http://www.labviewforum.de/unterschiedliche-Symbole-fuer-Frontpanel-und-Blockdiagramm-in-der-Taskleiste-t13546.html

Here you can find two suggestions for FP & BD-icons.

I've been doing a lot of string comparisons lately and I really hate having to drop To Upper/Lower Case function in front of my Equal? comparisons, as shown below:



 Case Insensitive Equal.png



It would be so much nicer if I could just have a special Case Insensitive mode for the Equal? node (and, it would be nice if the Equal? function changed its visual appearance, somehow, to signify that it is in a Case Insensitive mode):




Case Insensitive Equality Comparison.png

When creating a subVI from a selection, LabVIEW should do two things:

  1. Use the user's default connector pane pattern instead of selecting one matching the number of inputs and outputs. This will make easier wiring and allow users to add more IO later.
  2. If the user is using a "standard" pattern (e.g. 4-2-2-4), LabVIEW should try placing the error clusters at the bottom corners and objects or references at the top corners.

It should also try to make the FP of the subVI cleaner, but that's another matter.

It could be nice to have a context help on coercion dots to see what is the expected type of the data that is supposed to be wired to. This way you can rapidly determine what kind of conversion to use to avoid the coercion dots.






Support unicode officially for all FP indicators and controls! Captions and string indicators can be "coaxed" into showing Unicode characters (among other controls/indicators), but trees and listboxes (among most others) cannot show Unicode.



Of course, this may have a small audience, but anyone who has developed a UI meant to be distributed to half a dozen language-speakers has probably fought the same Unicode battles and figured out the display "hacks" that we have.




Block diagram string constants have a useful feature "Size to text" which is accessible through the standard right click menu.  One way in which this is useful is to ensure that information in an array of constants is not hidden: Right click on an element of a string-constant array and select "Size to text" and it will expand to show the full length of all the strings it contains.



What's needed is an equivalent for numerics (including rings and enums).  When dropped singly, these constants expand and shrink around their contents.  But if you drop a numeric constant on an array constant, it takes the size of the numeric and can only be expanded manually.  If you then enter a constant that is longer, only the first part will be shown, and there is no indication that the values are truncated.  (see image)



I think that arrays of numeric constants should resize to show everything entered, automatically.



16985i3AA6C5F1591D73F6

Hi guys,

I'm missing some very fast way how to create cluster out of selection. It could be done as it is shown here:



create cluster.png



I think since LV developers became familiar with Every GUI Programmer's Dream they are ready for the next step...

I often make small For Loops using Auto-Indexing, and only occasionally do I use either the Iteration Terminal or Count Terminal. My current practice is to tuck the Iteration Terminal under the Count Terminal just to get it out of the way, shown below. I propose that these two terminals can be shown or hidden (circled in green), just like the Conditional Terminal.






Here's an example of the new lower-profile For Loop with the unnecessary terminals hidden:




My idea is simple: Put the connector pane on the front panel next to the VI icon.



Why: Right clicking to show the conpane means extra clicks that would not be necessary if it was always there.  It would also be solve the problem of saving the VI with the connector pane hiding the VI icon.





(As already hinted here, I think this deserves a seperate idea).



Property nodes have many items that accept color data (cursor color, plot color, bg color, etc). When right-clicking these and "create constant|control|indicator", we get a generic U32 type. Instead, we want a colorbox! Even more complex color structures, e.g. (colors[4] of a boolean) should have colorboxes as the innermost elements.



In all instances I have ever used these properties, I ended up replacing the U32 with colorboxes for code readability and simplicity.



Idea: when creating an input or output (constant, control, indicator) on any color property, we should get a colorbox (control, constant, indicator) instead of a plain U32 numeric.
