How to show the value and the color simultaneously in an intensity graph

Solved!
Go to solution

Hi, Friend:

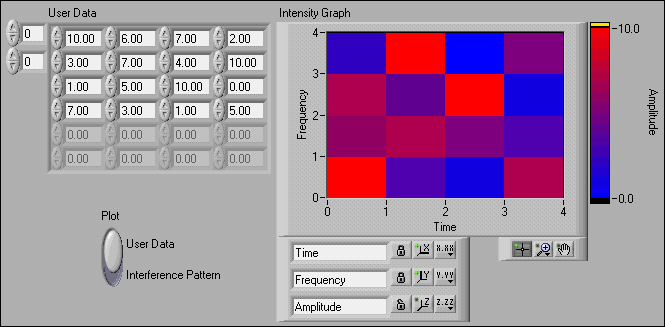

I'm working on mapping program by labview, and close to finish it. However, I faced a small problem while I'm using the intensity graph. As we know, the intensity graph uses the color to represent the value of z axis. What I want to do is to show both the value and color in the same graph. My design is similar to the attached pic. In the left, I have the data; whereas in the right, I plot the graph. I just want to show them together, could I?



Thank you very much.




0 Kudos
Message 1 of 3
(2,852 Views)
Solution
Accepted by topic author colorizedice

Topic is already being discussed here

0 Kudos
Message 2 of 3
(2,844 Views)

Thank you very much!

0 Kudos
Message 3 of 3
(2,836 Views)
