Dependent sources circuit: need help

Hey,

I have a circuit analysis assignment due, I've done the work by hand but I want to use multisim to check my solutions. Can someone give me some hints as to how to put in the dependent sources shown in the attached circuit.



Thanks

0 Kudos
Message 1 of 9
(14,739 Views)

pat666,



I believe you need to have either a ABM Voltage Source (Analog Behavioral Model) or you could use a Current Controlled Voltage Source and Voltage Controlled Voltage Source respectively.    In the database go to the Sources group -> CONTROLLED_VOLTAGE_SOURCES and this should allow you to do what is described in the schematic at those designated nodes.



Regards,

Pat Noonan

National Instruments

0 Kudos
Message 2 of 9
(14,713 Views)

Hi, _user32



seems that ABM_voltage source does not accept the expression with current, only voltage variable, is it?



Best,

0 Kudos
Message 3 of 9
(13,742 Views)

Hi,



There is a component called ABM_CURRENT under the CONTROLLED_CURRENT_SOURCES Family. You can use this for current.



Hope this helps.

Regards,

Tayyab R,
National Instruments.
0 Kudos
Message 4 of 9
(13,726 Views)



Dear Tayyab R



I need a voltage Source having V-I relation as:

V=-0.0202*I+0.1502*I^3, where I is the current through the source itself.

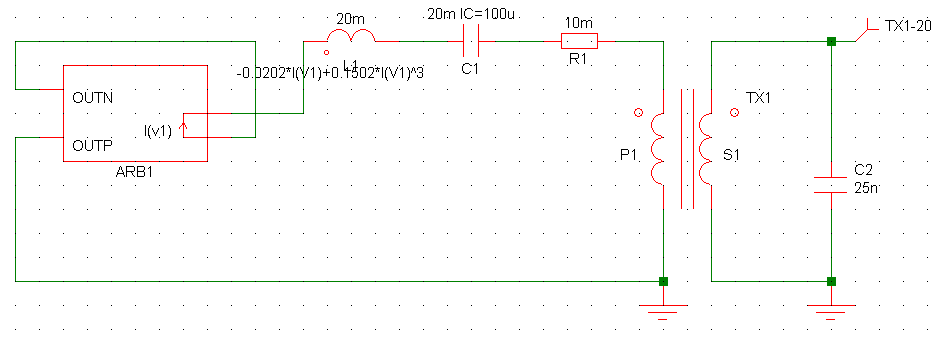

Below is what I modeled in Simetrix, could I implement this in multisim as well?






0 Kudos
Message 5 of 9
(13,714 Views)

Tang_Lihua,



I do not have Multisim but in Spice 3 that can be modeled with a linear independent voltage source (V1) set to 0 and a non-linear dependent source B.

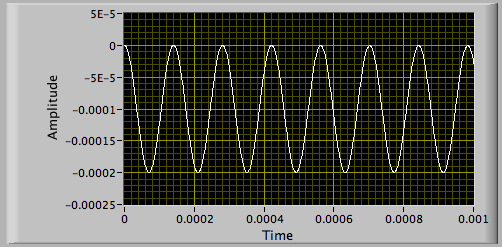

V1 is used to measure the current.  A transient analysis with the UIC option shows a sine wave at about 7 kHz in the circuit listed below. To do an AC analysis, a non-zero value of AC must be entered for V1 or some other source.



Test Arb source

V1 1 2 DC 0 AC 0
B 0 1 V=-0.0202*I(V1)+0.1502*I(V1)^3
Rx 2 0 1G
L1 2 3 20m
C1 3 4 20m IC=100u
R1 4 5 10m
C2 5 0 25n
R2 5 0 1G

.END






AC sweep.png

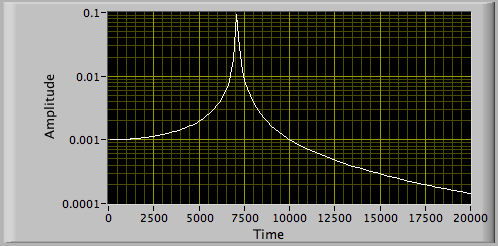

In the lower image the x-ais should be Frequency, not Time.



Lynn

0 Kudos
Message 6 of 9
(13,700 Views)

Dear Lynn



thanks for your reply.

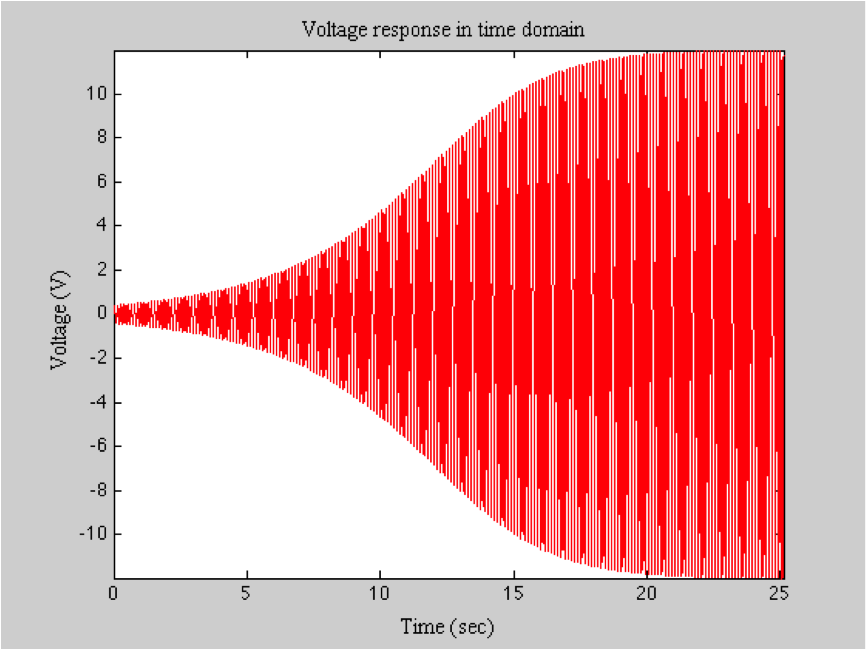

the response of voltage across capacitor should be like Matlab_voltage.png



Does spice 3 have any user interface? I need to add more advanced components.

0 Kudos
Message 7 of 9
(13,695 Views)

Tang_Lihua,



I suspected that the envelope should not be constant but did not take the time to pursue the reason.



The version of Spice that I use is a port of the Berkeley code to the Macintosh called MacSpice. It uses a command line interface.  It does not have any schematic capture or even a text editor.  It can plot results, but I export the data and plot it in a LabVIEW program I am developing so that I have more control over the plotting.



Lynn

0 Kudos
Message 8 of 9
(13,689 Views)

Dear lynn



thanks anyway.





0 Kudos
Message 9 of 9
